The sluice gate is based on a pressure segment used to control the water level of a weir. The flap width is 23 ft; the total width of the structure is 34 ft. It is possible to dam up water to a maximum height of 18.37 ft. The structure is made of steel S 355.
Ingenieurbüro Ehlenz, Beckingen, Germany
www.ibehlenz.de
Global deformations of sluice gate in RFEM (© Ingenieurbüro Jürgen Ehlenz)
Ingenieurbüro Ehlenz, Beckingen, Germany
www.ibehlenz.de
Global deformations of sluice gate in RFEM (© Ingenieurbüro Jürgen Ehlenz)

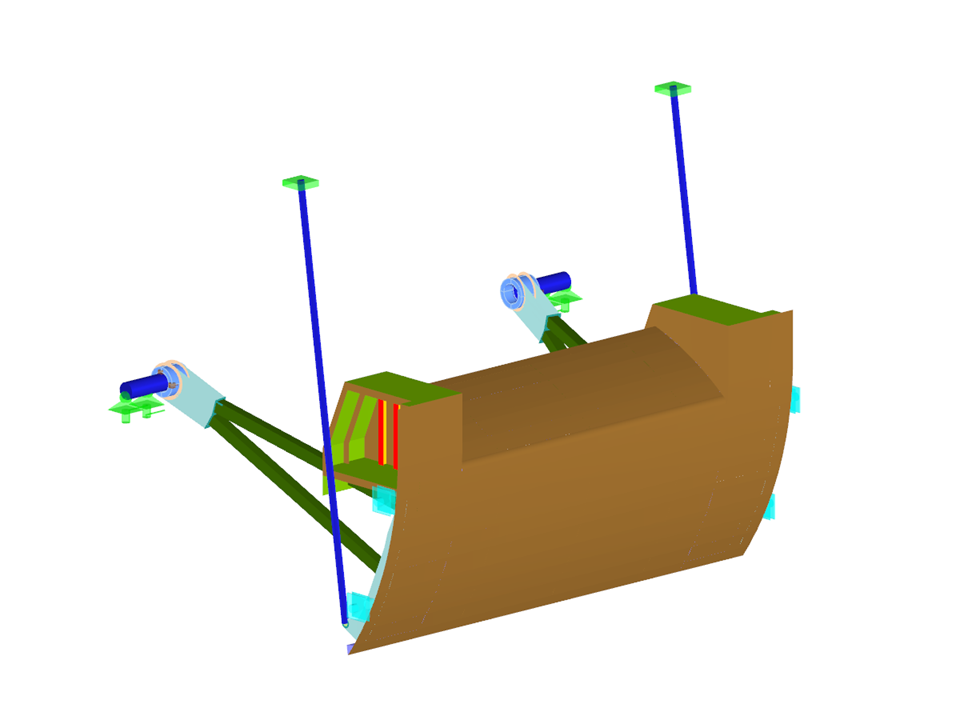

Flap Sluice Gate for Boat Lift
No Download Possible
Customer Project / View Only
| Number of Nodes | 3242 |
| Number of Lines | 3403 |
| Number of Members | 187 |
| Number of Surfaces | 607 |
| Number of Solids | 8 |
| Number of Load Cases | 1 |
| Total Weight | 29.564 tons |
| Dimensions (Metric) | 8.021 x 12.060 x 9.817 m |
| Dimensions (Imperial) | 26.32 x 39.57 x 32.21 feet |
| Program Version | 5.08.01 |
