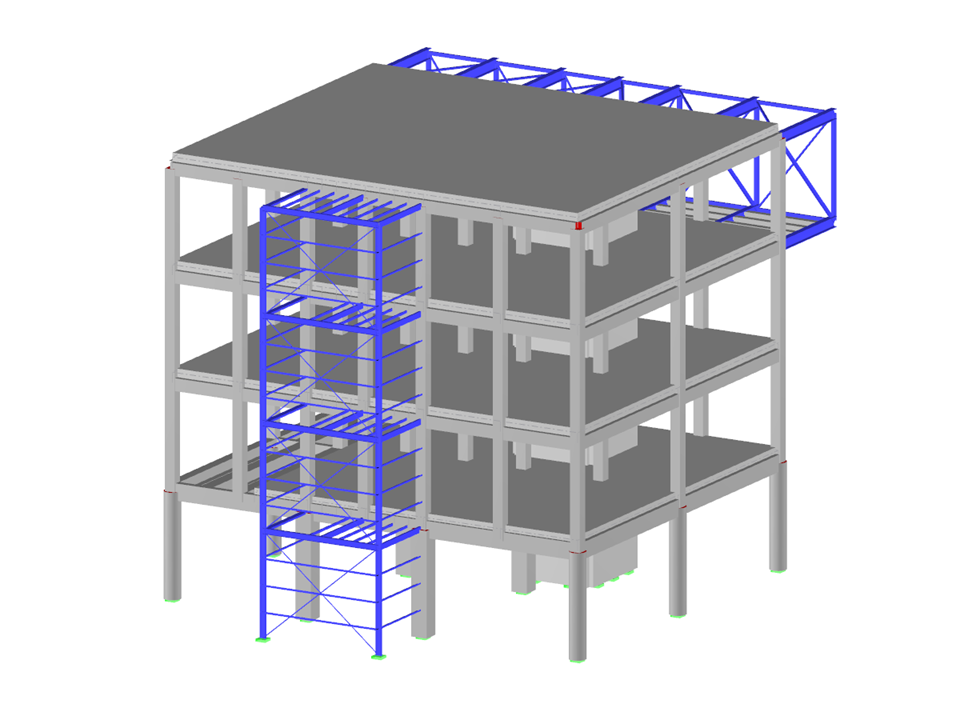

Steel and Concrete Structure
Number of Nodes | 294 |
Number of Lines | 542 |
Number of Members | 505 |
Number of Surfaces | 16 |
Number of Solids | 0 |
Number of Load Cases | 0 |
Number of Load Combinations | 0 |
Number of Result Combinations | 0 |
Total Weight | 2190.429 tons |
Dimensions (Metric) | 21.000 x 20.000 x 27.000 m |
Dimensions (Imperial) | 68.9 x 65.62 x 88.58 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
The reinforcement proposal from RF-/CONCRETE Members can be exported to Revit. The rectangular and circular cross-sections are currently supported.
The reinforcement bars can be modified retroactively in Revit.
Surface reinforcements defined in the RF-CONCRETE Surfaces add-on module can be exported to Revit as reinforcement objects via the direct interface. To do this, you can optionally select surface, rectangular, polygon, and circular reinforcement areas in RF-CONCRETE Surfaces. In addition to bar reinforcement, it is possible to export mesh reinforcement.
In the RFEM add-on Surface Concrete Design allows you to perform the fire design according to the simplified table method (EN 1992-1-2, Chapter 5.4.2 and Table 5.8 and 5.9) for walls and ceilings made of reinforced concrete.
When generating shear walls and deep beams, you can assign not only surfaces and cells, but also members.
