Download the model of a hall frame with imperfections here and open it with the finite element program RFEM.
This model is used in the Free Online Basic Training on Structural FEA Software RFEM 6 | Introduction to Steel Design.

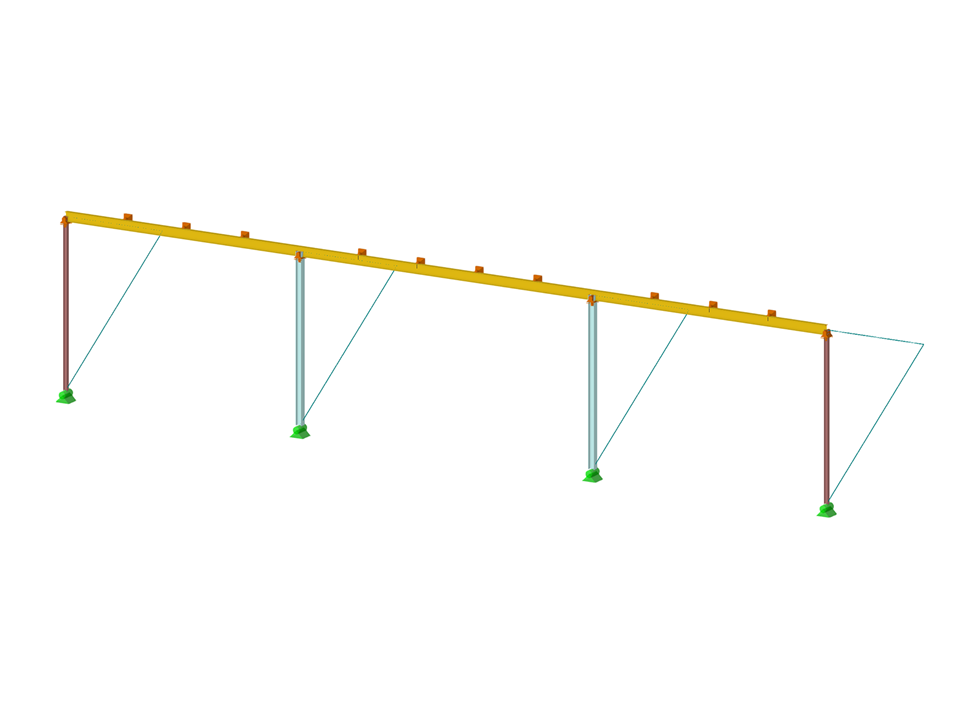

Hall Frame with Imperfections
| Number of Nodes | 18 |
| Number of Lines | 7 |
| Number of Members | 7 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 3 |
| Number of Load Combinations | 5 |
| Number of Result Combinations | 0 |
| Total Weight | 5.717 tons |
| Dimensions (Metric) | 39.000 x 8.000 x 0.000 m |
| Dimensions (Imperial) | 127.95 x 26.25 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
