KB 001841 | AISI Cold-Formed Steel Design Using Custom Section in RFEM 6

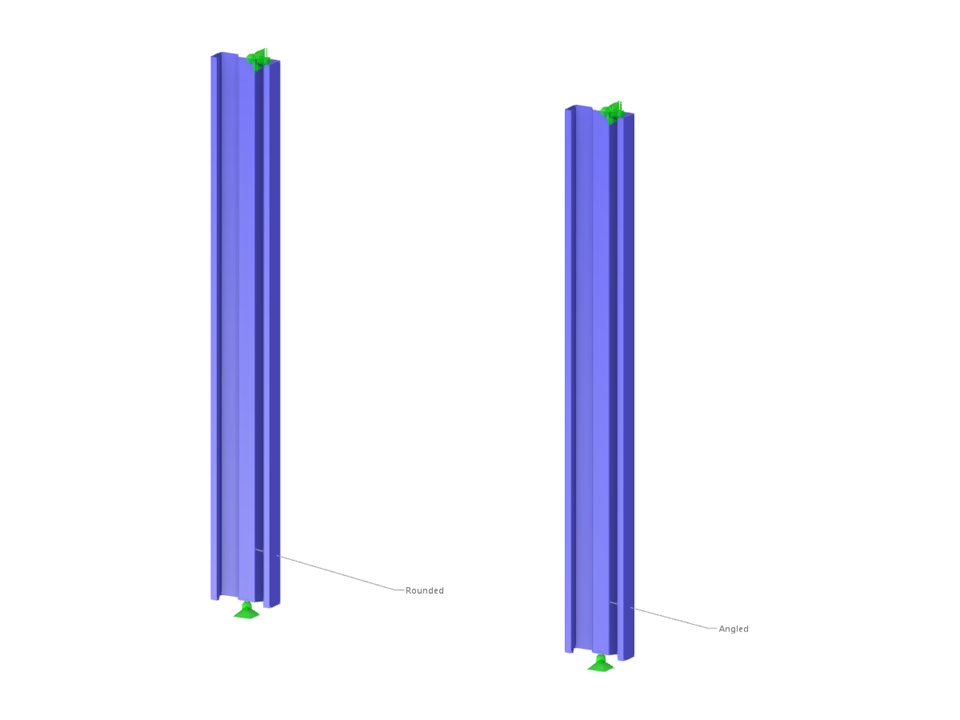

Cold-Formed Section Beams
Number of Nodes | 4 |
Number of Lines | 2 |
Number of Members | 2 |
Number of Surfaces | 0 |
Number of Solids | 0 |
Number of Load Cases | 1 |
Number of Load Combinations | 1 |
Number of Result Combinations | 0 |
Total Weight | 0.013 tons |
Dimensions (Metric) | 1.219 x 1.676 x 0.000 m |
Dimensions (Imperial) | 4 x 5.5 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
![KB 001841 | AISI Cold-Formed Steel Design Using Custom Section in RFEM 6](/en/webimage/040289/3510218/Image_01.png?mw=512&hash=04f84a8c909770792f6dd13d75bebdd3039dbe2f)
Custom sections are often required in cold-formed steel design. In RFEM 6, the custom section can be created using one of the “Thin-Walled” sections available in the library. For other sections that do not meet any of the 14 available cold-formed shapes, the sections can be created and imported from the standalone program, RSECTION. For general information on AISI steel design in RFEM 6, refer to the Knowledge Base article provided at the end of the page.
