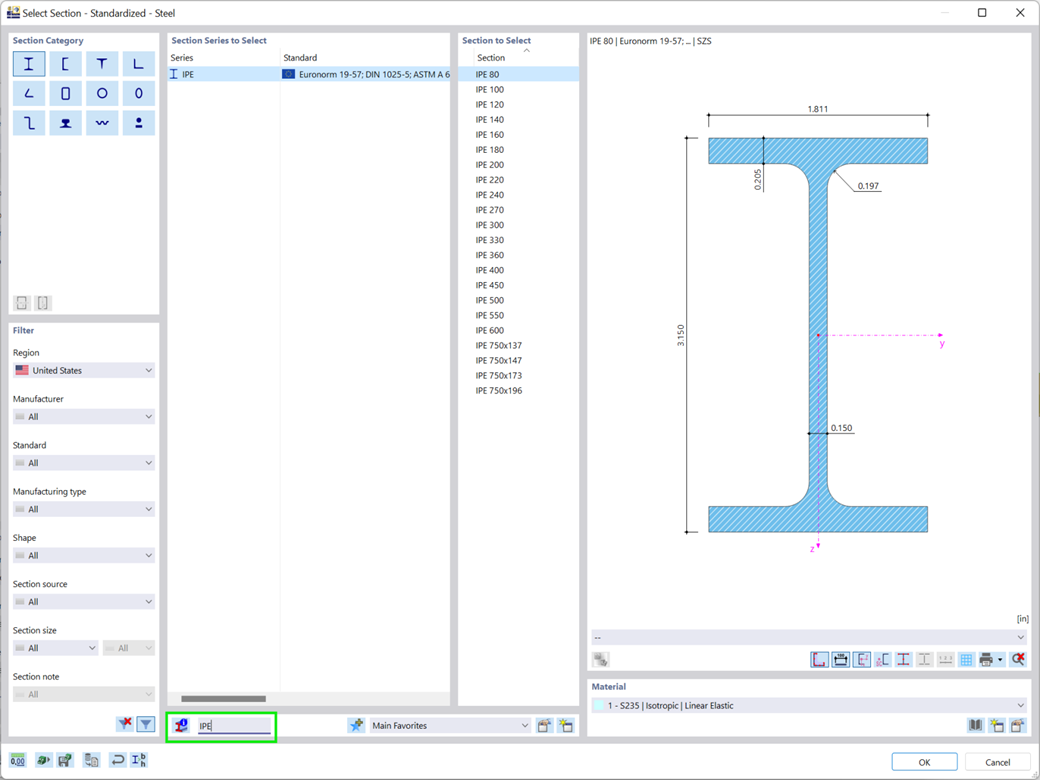

Save your time in the cross-section library and use a short text search to quickly find a desired cross-section or cross-section series.
Duration: 03:03:00 min
Duration: 00:00:06 min
Duration: 02:50:31 min
Duration: 00:01:27 min
Duration: 04:21:12 min
Duration: 00:14:49 min
Knowledge Base
Duration: 00:00:58 min
Duration: 03:03:34 min
Duration: 00:07:36 min
You can make various settings in order to achieve a clearly‑arranged display of the result values. For example, some users may not want the white background in text bubbles. You can adjust the background in "Display Properties" using the Transparent and Background color option.
In RF-/FOUNDATION Pro, the user can freely select the proportion of the relieving soil pressure by means of the factor kred.
For the design of concrete surfaces, the rib component of the internal forces can be neglected for the ULS calculation and for the analytical method of the SLS calculation, because this component is already considered in the member design. To do this, select the check box in the "Details" dialog box. If no rib was defined, this function is not available.
For relatively large or relatively small surfaces, it can happen that the automatically created result values do not fit the model: In the case of large surfaces, there can be too many result values; in the case of small surfaces, too few.
The "Nonlinear Material Behavior" add-on includes the Anistropic | Damage material model for concrete structural components. This material model allows you to consider concrete damage for members, surfaces, and solids.
You can define an individual stress-strain diagram via a table, use the parametric input to generate the stress-strain diagram, or use the predefined parameters from the standards. Furthermore, it is possible to consider the tension stiffening effect.
For the reinforcement, both nonlinear material models "Isotropic | Plastic (Members)" and "Isotropic | Nonlinear Elastic (Members)" are available.
It is possible to consider the long-term effects due to creep and shrinkage using the "Static Analysis | Creep & Shrinkage (Linear)" analysis type that has been recently released. Creep is taken into account by stretching the stress-strain diagram of the concrete using the factor (1+phi), and shrinkage is taken into account as the pre-strain of the concrete. More detailed time step analyses are possible using the "Time-Dependent Analysis (TDA)" add-on.
In the Concrete Design add-on, you can determine the required longitudinal reinforcement for the direct crack width analysis (w k).
For the design of reinforced concrete members, there is the option to automatically determine the number or diameter of rebars.
For concrete design, you can display the reinforcement results in tables separately by design situation.
Are the models and presentations from Info Day 2018 freely available, and can you send them to me?
In RF-CONCRETE Surfaces, I get a high amount of reinforcement in connection with a lever arm that is almost zero. How does such a small lever arm of internal forces come about?
When switching from the manual definition of the reinforcement areas to the automatic arrangement of the reinforcement according to window 1.4, the result of the deformation calculation changes, although the basic reinforcement has not been changed. What makes this change?
Why do I get a discontinuous area in the distribution of internal forces? In the area of the supported line, the shear force VEd shows a jump, which does not seem plausible.
I obtain different results when comparing the deformation analysis in the RF‑CONCRETE add-on modules and another calculation program. What could be the reason for this?
What is the best way to consider steel fiber concrete in the structural analysis software RFEM 5?
