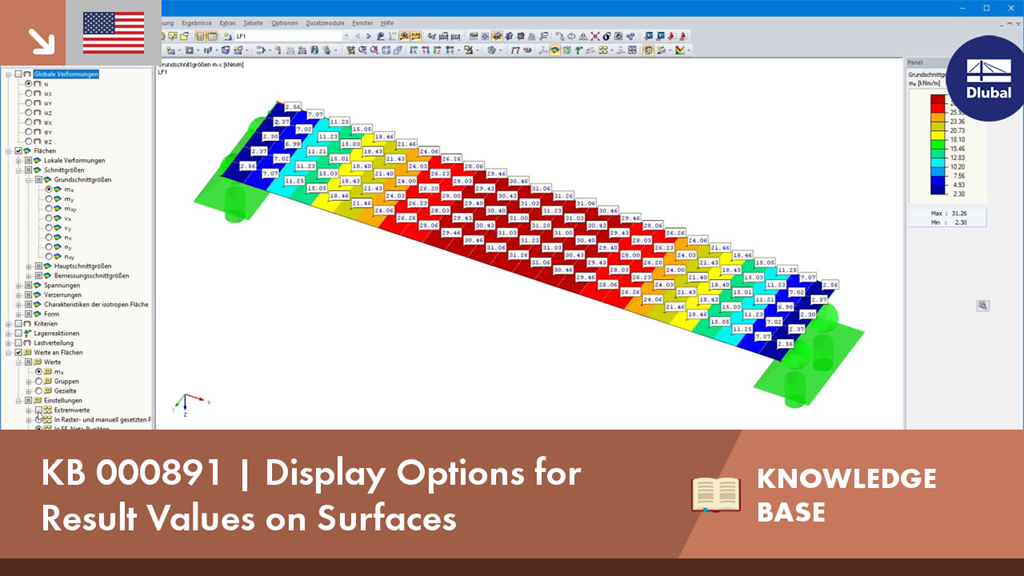

You can make various settings in order to achieve a clearly‑arranged display of the result values. For example, some users may not want the white background in text bubbles. You can adjust the background in "Display Properties" using the Transparent and Background color option.
KB 000891 | Display Options for Result Values on Surfaces
Links
Do you have any questions?
![Variants of Display of Result Values](/en/webimage/010258/3042968/01-en.png?mw=512&hash=65e98cfe859ce35a3e3e9da47a0ef9335401520e)
You can make various settings in order to achieve a clearly‑arranged display of the result values. For example, some users may not want the white background in text bubbles. You can adjust the background in "Display Properties" using the Transparent and Background color option.
![Displaying Result Values](/en/webimage/010423/2985401/01-en.png?mw=512&hash=65e98cfe859ce35a3e3e9da47a0ef9335401520e)
For relatively large or relatively small surfaces, it can happen that the automatically created result values do not fit the model: In the case of large surfaces, there can be too many result values; in the case of small surfaces, too few.
