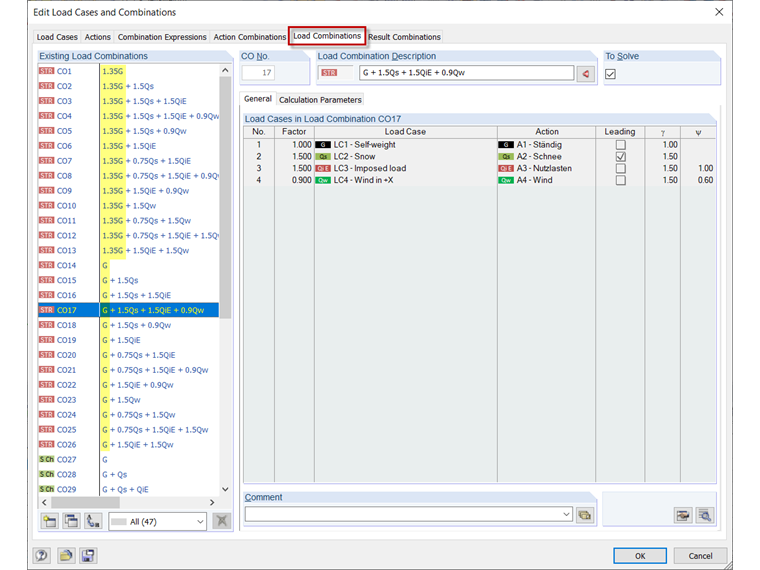

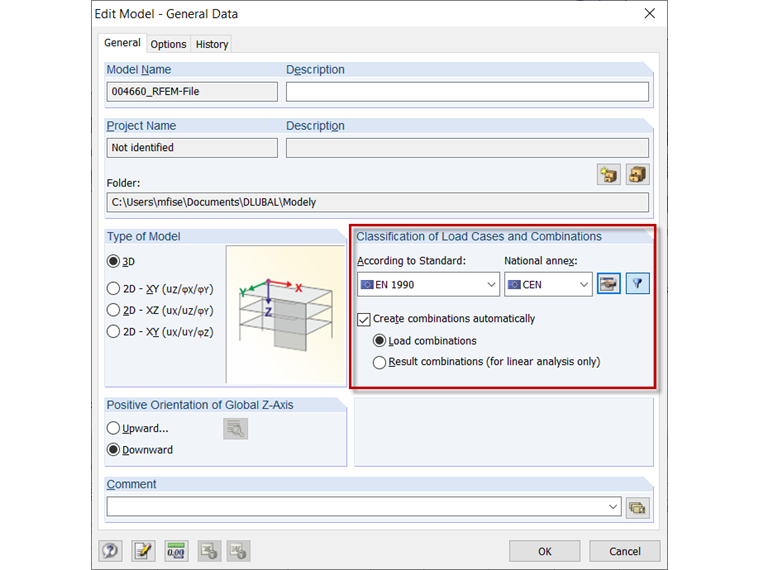

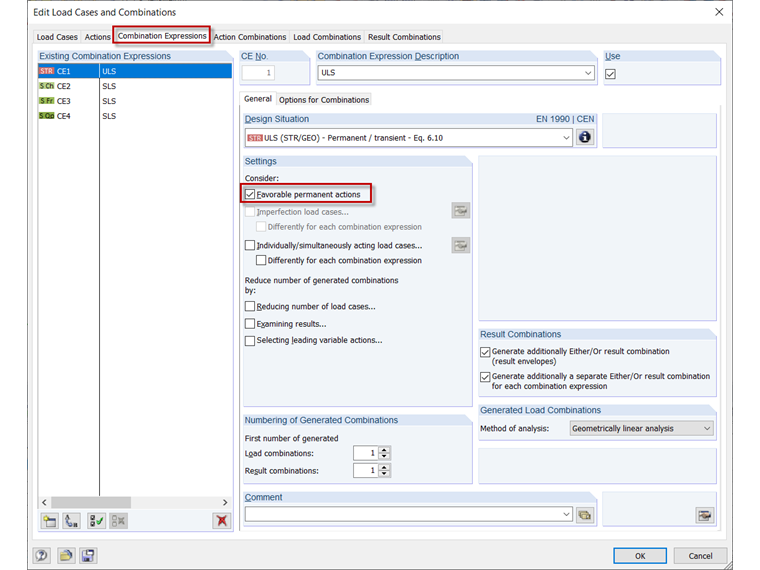

To do this, there is an option in the "Combination Expressions" tab when activating automatic combinations that allows you to activate the favorably acting permanent loads.
Question
How can I consider loads from the self-weight as "favorable" and "unfavorable" for the combinations?
Mr. Kieloch provides technical support to our customers and is responsible for development in the area of reinforced concrete structures.
