Question:

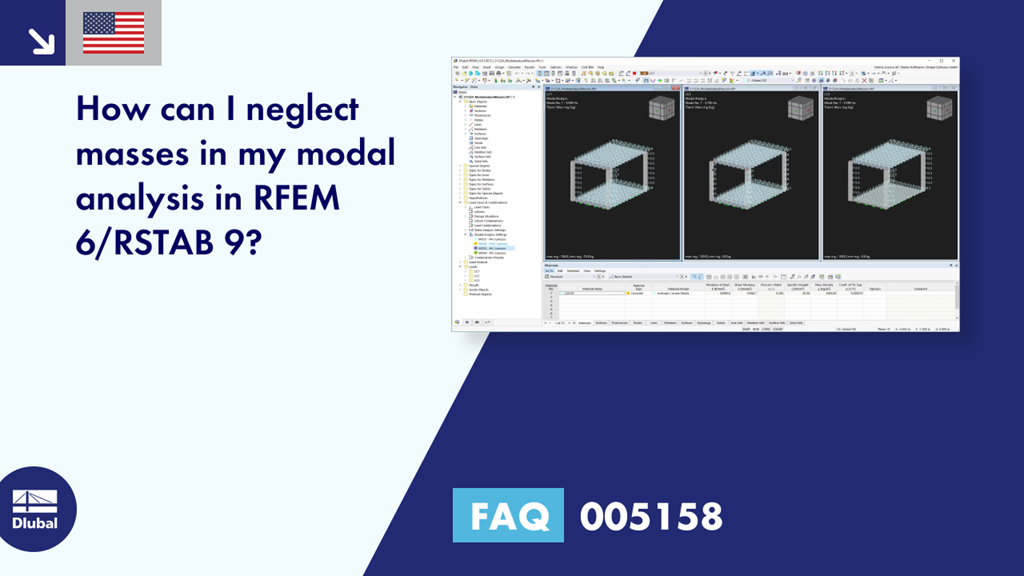

How can I neglect masses in my modal analysis in RFEM 6 / RSTAB 9?
Answer:
Masses can be neglected in the modal analysis settings.
It is possible to neglect masses in all fixed nodal supports and line supports, or to create a selection of the individual objects.
.png?mw=512&hash=4a84cbc5b1eacf1afb4217e8e43c5cb50ed8d827)
