Hemsedal Alpine Suites, Norway
  • Description
  • Reviews (0)

The "Hemsedal Ski Center" in the Scandinavian Alps is one of the top 3 ski resorts in Norway. It comprises a total of 49 ski slopes and 20 ski lifts. At the foot of the mountainside, a new apartment hotel with 100 modern rooms will be completed by the end of 2017.

In addition to an underground parking garage, a restaurant and commercial units, it will also contain climbing walls, among other things.

DBC AS from Gol, Norway, analyzed the spatial model in RFEM and provided the internal forces to the producer of prefabricated construction (concrete & steel). Furthermore, DBC AS was responsible for the detailed planning of all in-situ concrete constructions.

Architecture/Structural Design
DBC AS
Oslo/Gol, Norway

Investor
Skiab Invest AS
Trysil, Norway
Website SkiStar

Implementation
PEAB AS
Oslo, Norway
Website PEAB

PEAB SVERIGE AB
Karlstad, Sweden
Website PEAB

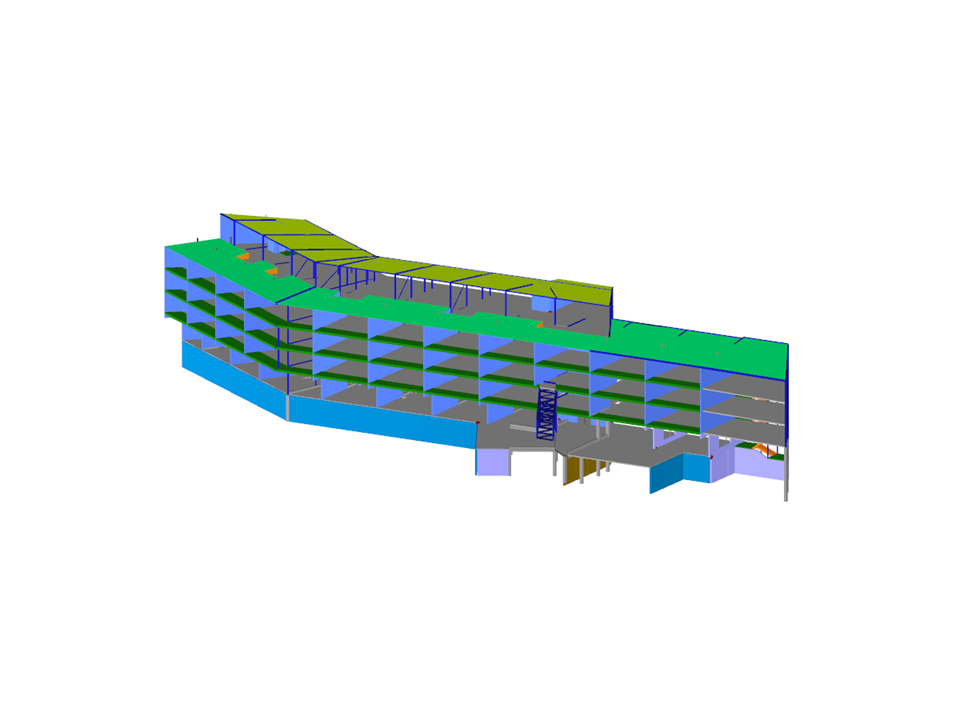

3D Model (© DBC AS)

Model Used in
Overall
0 out of 5 stars
This page has 0 user ratings.
5 star
4 star
3 star
2 star
1 star
(0)
0 out of 5 stars
5 star 0
4 star 0
3 star 0
2 star 0
1 star 0

Concrete Structure of Building

No Download Possible Customer Project / View Only
Number of Nodes 2053
Number of Lines 3264
Number of Members 795
Number of Surfaces 421
Number of Load Cases 11
Number of Load Combinations 22
Number of Result Combinations 4
Total Weight 6319.805 tons
Dimensions (Metric) 111.338 x 47.858 x 23.350 m
Dimensions (Imperial) 365.28 x 157.01 x 76.61 feet
Program Version 5.06.30
