Results of Dynamic Analysis

The Building Model add-on is not only useful for structural analyses, but also for dynamic analyses. The result tables described in the chapter Results by Story are therefore also integrated into the Spectral Analysis category of the dynamic analysis as soon as results are available.

Spectral Analysis Results by Stories
Spectral Analysis Results by Stories

The tables themselves are identical to those of the structural analysis. The result values are specially prepared for the dynamic analysis.

Info

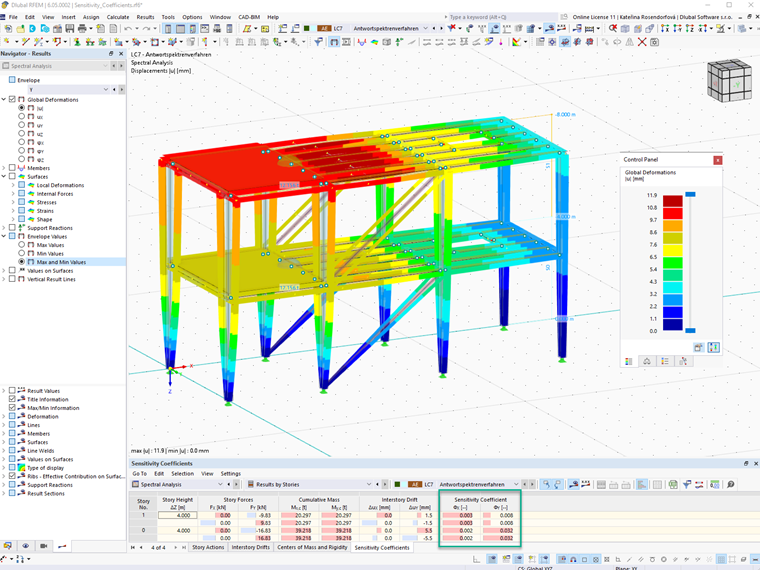

In the Sensitivity Coefficients table, you can view the sensitivity coefficients of the individual stories and evaluate whether a second-order analysis is required. This is described in more detail in Technical Article 001866.

Feature 002722 | Sensitivity Coefficient
Sensitivity Coefficients

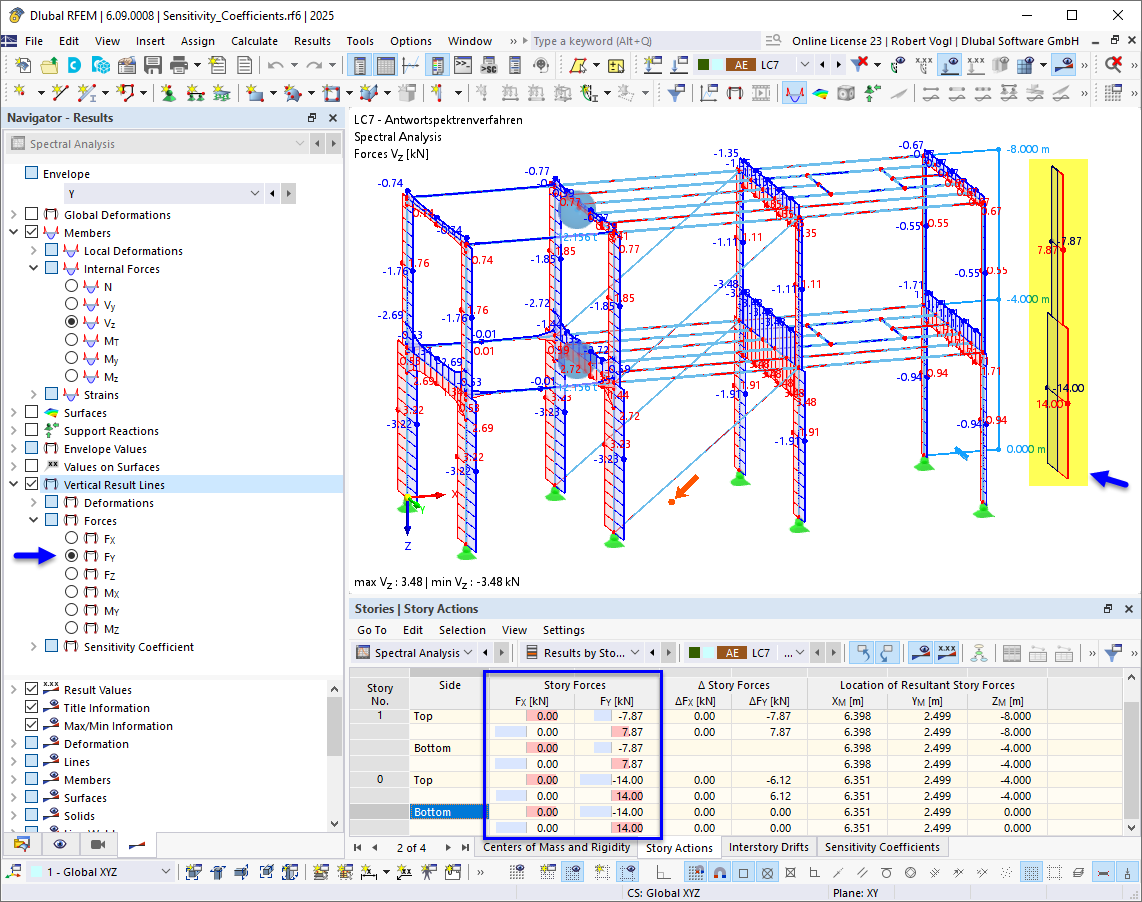

The forces of the horizontal transverse shear can be evaluated not only in the table, but also graphically: In Navigator - Results, select the check box for the Vertical Result Lines category and expand the options for the Forces.

The display shows vertical result lines for evaluating horizontal transverse loads and the total seismic shear.
Vertical Result Line with Seismic Shear

The forces FX and FY represent the horizontal shear loads as a result of an integration of the internal forces. The total seismic shear is indicated at the lowest point of the result line.

Tip

In the Building Model Dynamic Analysis example, you can learn how to use a building model for dynamic analyses in accordance with EN 1998.
