The reinforced concrete design for fire situations is carried out according to the simplified method based on EN 1992-1-2, Clause 4.2. The "zone method" described in Annex B.2 is used: The cross-section is subdivided into a number of parallel zones of equal thickness, and their temperature-dependent compressive strength is determined. The reduced load-bearing capacity in the event of fire exposure is thus represented by a reduced structural component's cross-section with reduced strengths.

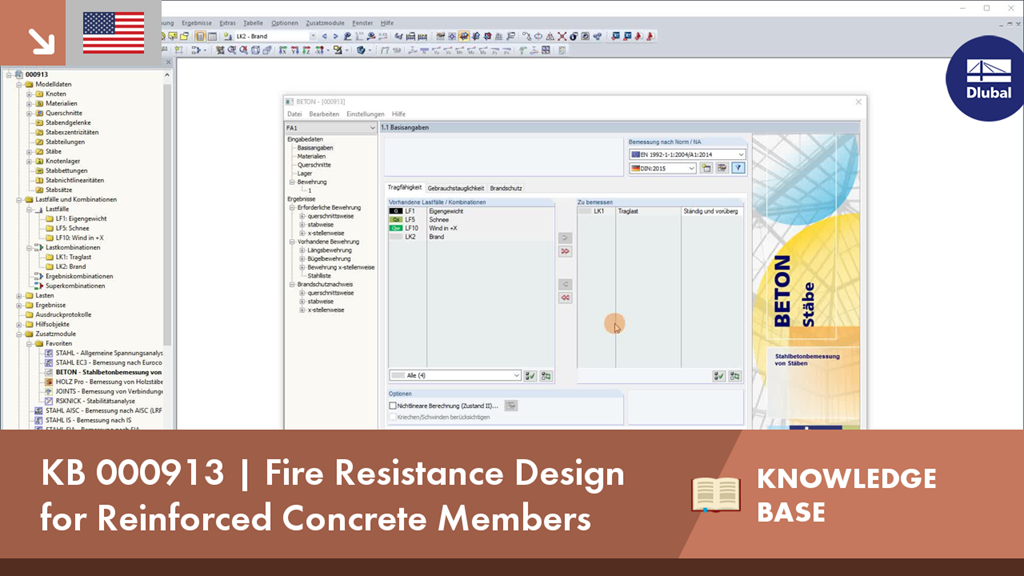

KB 000913 | Fire Resistance Design for Reinforced Concrete Members
![Fire Resistance Design with CONCRETE and RF-CONCRETE Members](/en/webimage/010240/3058619/1-en.png?mw=512&hash=2f0018b00b526e3852def3f63ee3e343e51b99d4)
![Minimum Reinforcement Reduction of Slow-Curing Concrete](/en/webimage/010260/3044192/ENG_01.png?mw=512&hash=a243b0a301b4da60ae856578ede329b49ab18db5)
![Graphical Display of Full / Reduced Shear Force and Required Shear Reinforcement](/en/webimage/010392/3006680/ENG_01_Grafische_Ausgabe_der_vollen_und_reduzierten_Querkraft_sowie_der_erforderlichen_Schubbewehrung.png?mw=512&hash=3e04afe35664605c470b9b3d8b83c35c97cce12b)
![Subsequent Editing of Reinforcement Proposal](/en/webimage/010438/2983532/01-EN.png?mw=512&hash=17127434c06258f349409b3e8f047f6d0e8c4ea7)
![Transfer of Reinforcement from RFEM/RSTAB (Top) to Revit (Bottom)](/en/webimage/006834/526064/Dlubal-Revit.png?mw=512&hash=9a92302ba8b440403caf2f68050db6dc529c1eb1)
The reinforcement proposal from RF-/CONCRETE Members can be exported to Revit. The rectangular and circular cross-sections are currently supported.
The reinforcement bars can be modified retroactively in Revit.
![Feature 002828 | Fire Design of Slabs and Walls According to Simplified Table Method](/en/webimage/050837/3925042/50837.png?mw=512&hash=b06639a36ab8b62ab6d08e08552a5ec274469a37)
In Concrete Design Add-on for RFEM 6 / RSTAB 9 you can perform the fire design of reinforced concrete slabs and walls according to the simplified table method (EN 1992‑1‑2, Section 5.4.2 and Table 5.8 and 5.9).
![Feature 002826 | Punching Shear Reinforcement](/en/webimage/050658/3936123/50658.png?mw=512&hash=ae20d4ca78cdf203a2c2d3ccbb7daa0f324da77a)
In the Concrete Design add-on, you have the option to define an existing vertically oriented punching shear reinforcement. This is then taken into account in the punching shear design.
![Feature 002801 | Punching Shear Design for All Section Shapes](/en/webimage/048276/3861250/2024-05-01_15-05-25.png?mw=512&hash=7732dd7fd2a19d53a9f6f77a35896a7c3676cff2)
Do you have individual column sections and angled wall geometries, and need punching shear design for them?
No problem. In RFEM 6, you can perform punching shear design not only for rectangular and circular sections, but for any cross-section shape.
