In the case of using the slow‑curing concrete (usually for thick components), you can reduce the calculated minimum reinforcement by a factor of 0.85 to apply the load due to restraint, according to EN 1992‑1‑1, Section 7.3.2. However, a precondition for reduction is that the characteristic value of the strength development r = fcm2 / fcm28 does not exceed 0.3. Other key requirements for the application of this reinforcement reduction are explicitly specified in final planning documents.

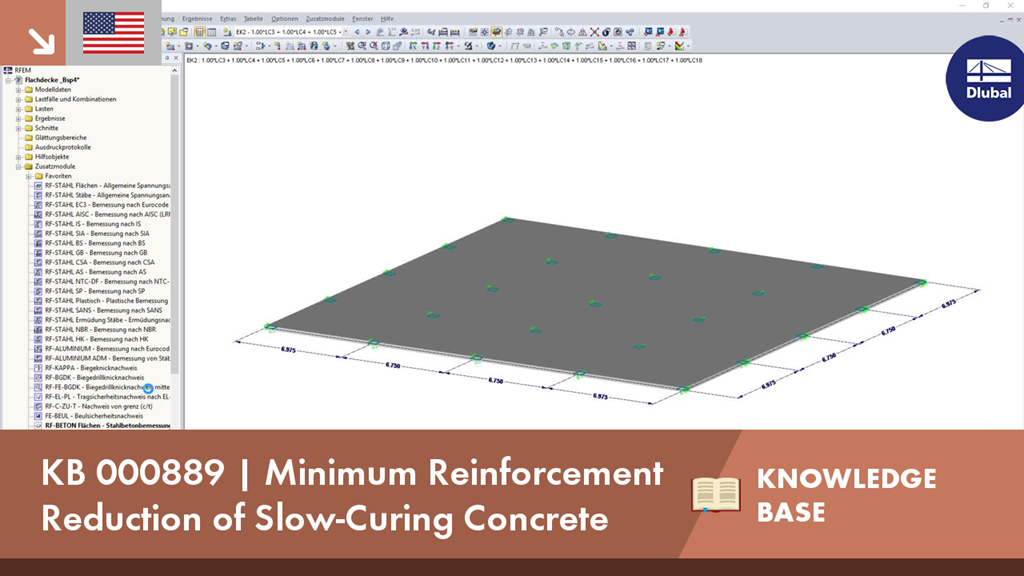

KB 000889 | Minimum Reinforcement Reduction of Slow-Curing Concrete
![Minimum Reinforcement Reduction of Slow-Curing Concrete](/en/webimage/010260/3044192/ENG_01.png?mw=512&hash=a243b0a301b4da60ae856578ede329b49ab18db5)
![Fire Resistance Design with CONCRETE and RF-CONCRETE Members](/en/webimage/010240/3058619/1-en.png?mw=512&hash=2f0018b00b526e3852def3f63ee3e343e51b99d4)
![Graphical Display of Full / Reduced Shear Force and Required Shear Reinforcement](/en/webimage/010392/3006680/ENG_01_Grafische_Ausgabe_der_vollen_und_reduzierten_Querkraft_sowie_der_erforderlichen_Schubbewehrung.png?mw=512&hash=3e04afe35664605c470b9b3d8b83c35c97cce12b)
![Subsequent Editing of Reinforcement Proposal](/en/webimage/010438/2983532/01-EN.png?mw=512&hash=17127434c06258f349409b3e8f047f6d0e8c4ea7)
![Transfer of Reinforcement from RFEM/RSTAB (Top) to Revit (Bottom)](/en/webimage/006834/526064/Dlubal-Revit.png?mw=512&hash=9a92302ba8b440403caf2f68050db6dc529c1eb1)
The reinforcement proposal from RF-/CONCRETE Members can be exported to Revit. The rectangular and circular cross-sections are currently supported.
The reinforcement bars can be modified retroactively in Revit.
![Feature 002828 | Fire Design of Slabs and Walls According to Simplified Table Method](/en/webimage/050837/3925042/50837.png?mw=512&hash=b06639a36ab8b62ab6d08e08552a5ec274469a37)
In the Concrete Design add-on for RFEM 6, you can perform the fire design of reinforced concrete slabs and walls according to the simplified table method (EN 1992‑1‑2, Section 5.4.2 and Tables 5.8 and 5.9).
![Feature 002826 | Punching Shear Reinforcement](/en/webimage/050658/3936123/50658.png?mw=512&hash=ae20d4ca78cdf203a2c2d3ccbb7daa0f324da77a)
In the Concrete Design add-on, you have the option to define an existing vertically oriented punching shear reinforcement. This is then taken into account in the punching shear design.
![Feature 002801 | Punching Shear Design for All Section Shapes](/en/webimage/048276/3861250/2024-05-01_15-05-25.png?mw=512&hash=7732dd7fd2a19d53a9f6f77a35896a7c3676cff2)
Do you have individual column sections and angled wall geometries, and need punching shear design for them?
No problem. In RFEM 6, you can perform punching shear design not only for rectangular and circular sections, but for any cross-section shape.
