Warning 465: "Line [No.] is simultaneously used as a boundary line of a surface and an opening."

I get Warning No. 465: "Line [No.] is simultaneously used as a boundary line of a surface and an opening". Do I have to adjust anything?


Answer:

Openings are used to create cutouts in surfaces. Finite elements are not generated and surface loads are not applied to the openings. Openings on the edge of a surface are allowed as well.

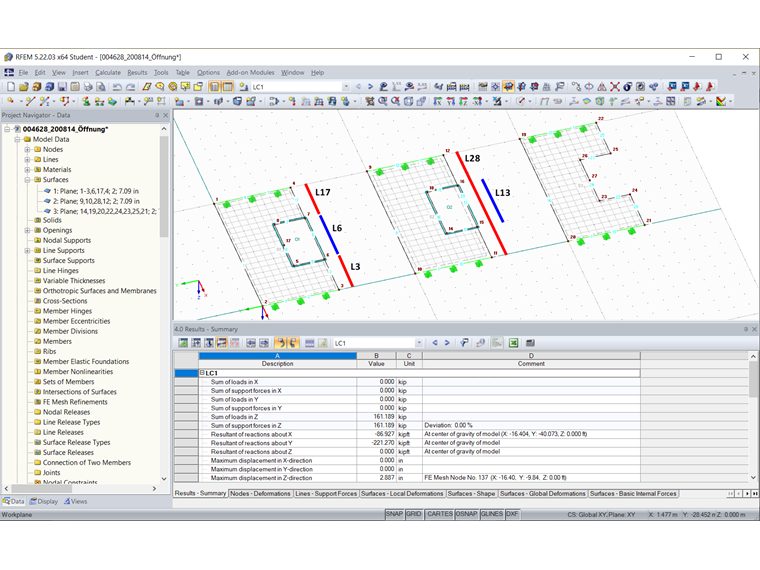

The boundary lines of a surface must form a closed continuous line. In our example, the warning message only appears for Surface 1, but not for Surface 2. Surface 1 is defined by three boundary lines on one edge, but Surface 2 is not.

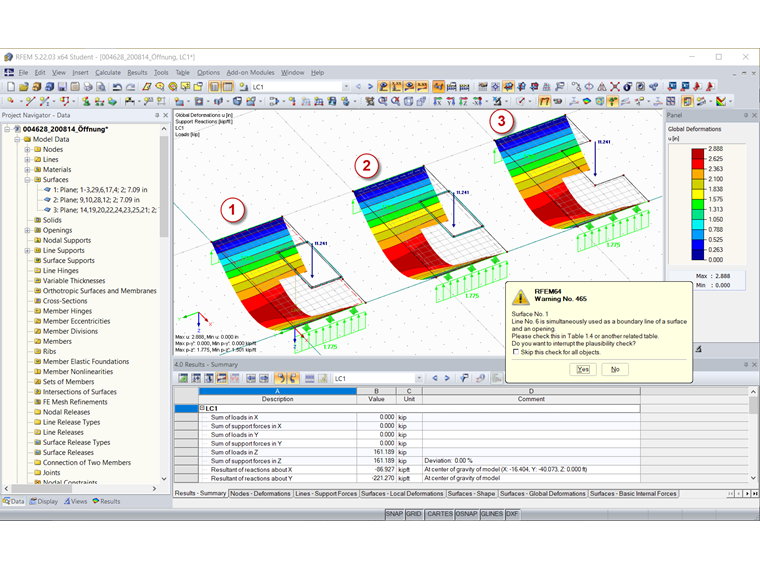

A comparison of the results shows that you can model your surfaces with openings in all three cases.
