Question
I was checking the cross-section properties of rolled cross-sections in SHAPE‑THIN and found out that there are discrepancies with the tables when determining the torsional constant It. How can this be explained?
Answer:

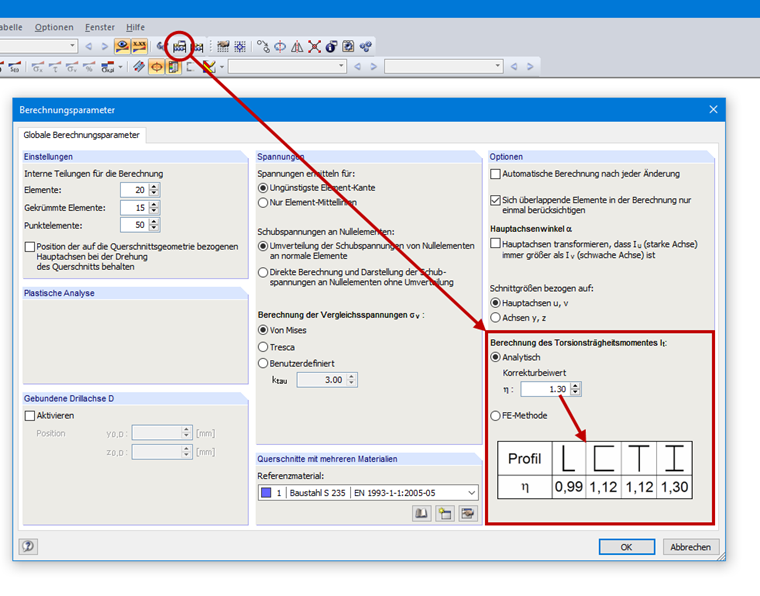

When determining the torsional moment of inertia, point elements are not considered for It in the analytical equations. Therefore, it is possible to apply a correction factor for cross-sections with distinct fillets, such as rolled cross-sections, to determine the effect of the point elements. Image 01 shows recommendations for various types of rolled cross-sections. This correction factor can be adjusted in the calculation parameters. Furthermore, it is also possible to calculate the torsional constant using the FE method, which also covers the effect of point elements and welds. This approach requires slightly more computing time than the analytical calculation.
