Direct Use of Support Forces in Calculation

Can I use the displayed support forces directly for a further calculation?

Answer:

The displayed support forces are the characteristic values, including the reduced dynamic factors, and can thus be used directly for a further calculation.

There are three ways to sort the display in result window 2.3.

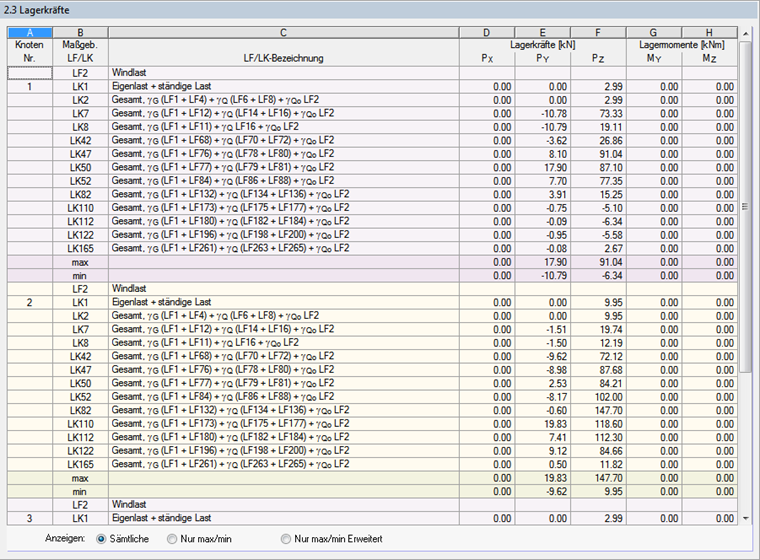

  • The first option (Image 01) shows All determined support forces of the load combinations. In addition, Load Case 2 Wind Load is displayed so that the support forces can be calculated for the individual components (crane, permanent load, and wind).
Support Forces - All
1 Support Forces - All

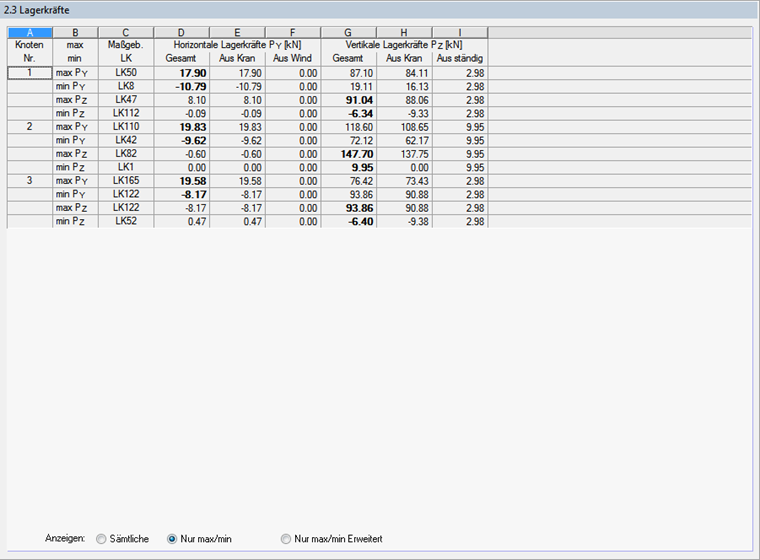

  • With the Only max/min option (Image 02), only the extreme values of the support forces for the corresponding directions are output; that is to say, the characteristic support forces multiplied by the corresponding vibration coefficient for supports.
Only Max/Min Support Forces
2 Only Max/Min Support Forces

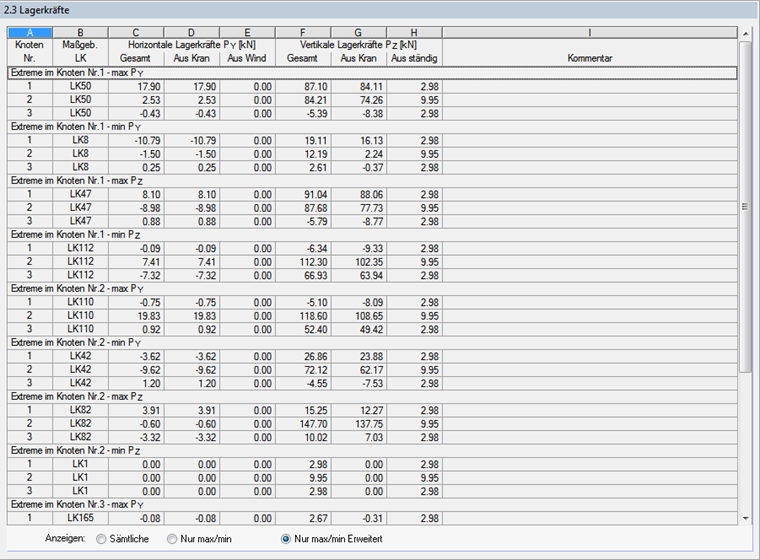

  • The Only max/min advanced display option (Image 03) shows the extreme values of the horizontal support forces (with the components from a crane and a wind load) and the vertical support forces (with the components from a crane and a permanent load).
Only Max/Min - Advanced Support Forces
3 Only Max/Min - Advanced Support Forces

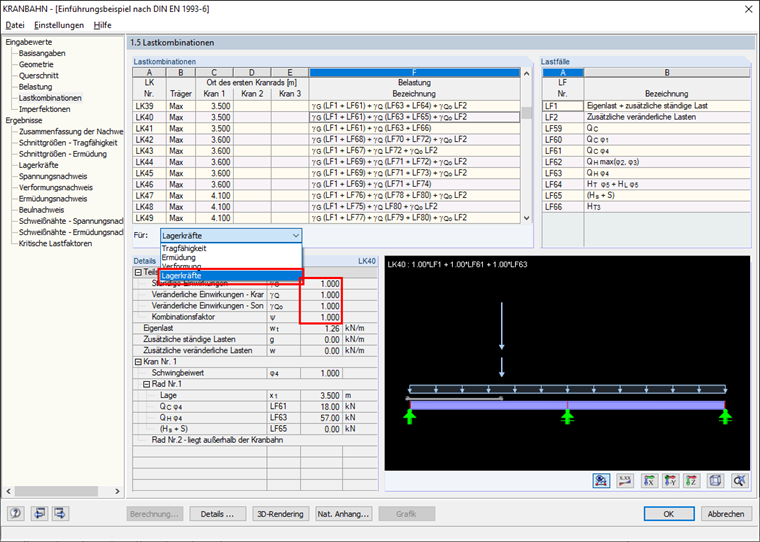

  • The partial safety factors and combination factors used for the respective design situation can be displayed easily in Window 1.5 Load Combinations (see Image 04). Thus, it becomes clear very quickly whether the calculated results are the characteristic values or the design values.
Window 1.5 Load Combinations
4 Window 1.5 Load Combinations
