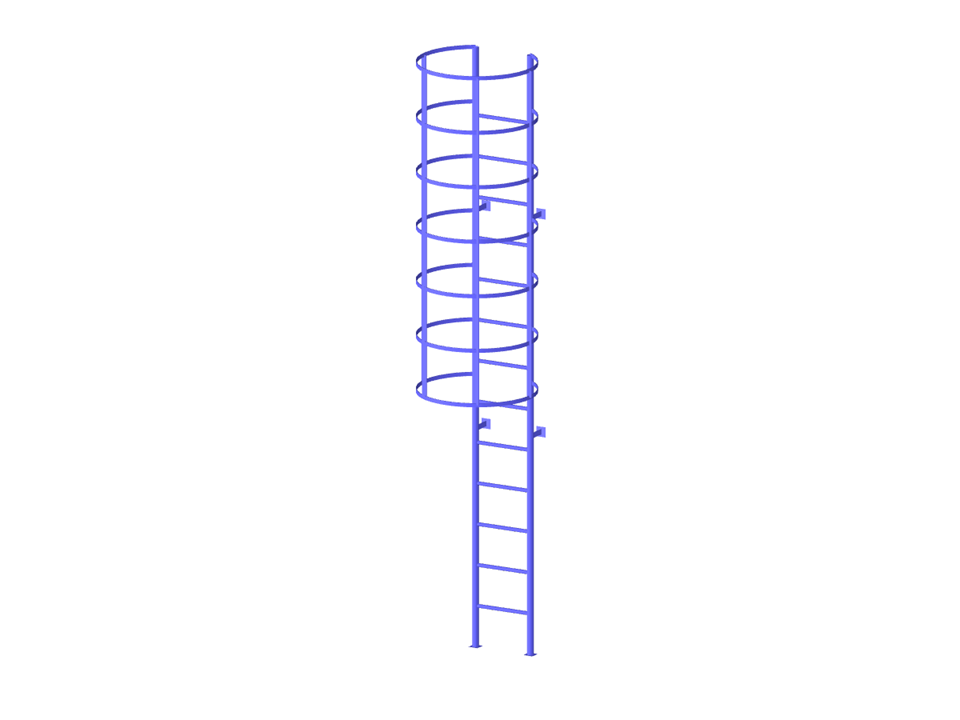

Parametrization of a marine staircase with bar elements including guardrail and anchors.
Model created by the Dlubal Latam engineering team. The model is also available as a parameterized block on the Dlubal Latam website.
Overall
This page has 0 user ratings.
| 5 star | ||
| 4 star | ||
| 3 star | ||
| 2 star | ||
| 1 star |
Marine Ladder
| Block parameters editable dynamically | |
| Number of Nodes | 103 |
| Number of Lines | 54 |
| Number of Members | 30 |
| Number of Surfaces | 6 |
| Total Weight | 0.074 tons |
| Dimensions (Metric) | 0.863 x 0.950 x 4.400 m |
| Dimensions (Imperial) | 2.83 x 3.12 x 14.44 feet |
| Program Version | 5.27.01 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
