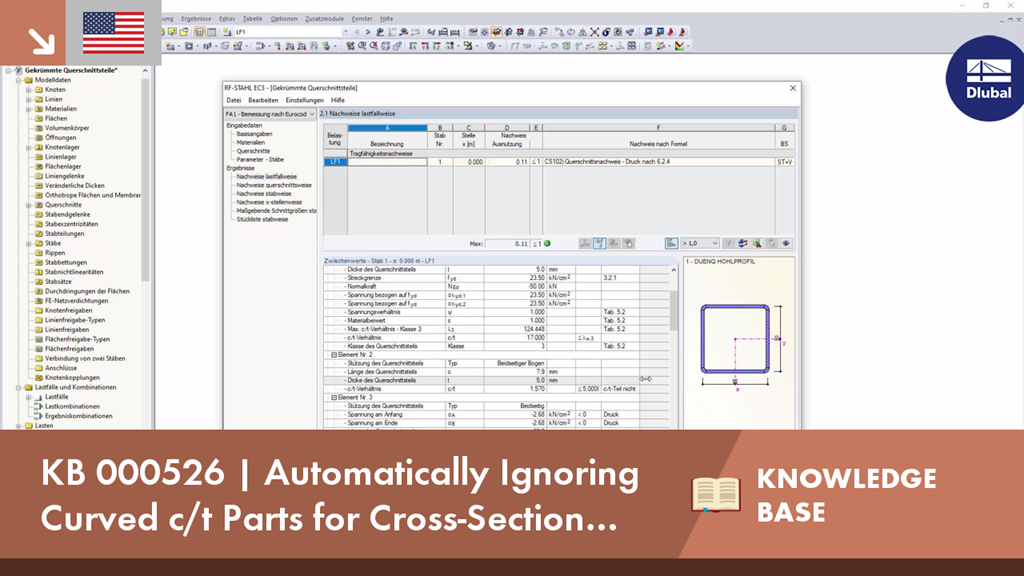

The cross-section classification according to EN 1993‑1‑1 and EN 1993‑1‑5 can be carried out automatically in the RF‑/STEEL EC3 add-on module. The maximum c/t ratios are specified in the standard for straight cross-section parts. There are no normative provisions for curved cross-section parts and therefore the cross-section classification cannot be performed for such cross-section parts.
KB 000526 | Automatically Ignoring Curved c/t Parts for Cross-Section Classification
Links
Do you have any questions?
![Curved Cross-Section Part of SHAPE-THIN Section](/en/webimage/010509/2960902/1_Curved_ct_part_of_SHAPE-THIN_profile.png?mw=512&hash=a0c8ece8be2297a1d48c677fff3324ff2ff6d1c9)
The classification of cross-sections according to EN 1993‑1‑1 and EN 1993‑1‑5 can be carried out automatically in the RF‑/STEEL EC3 add-on module. The maximum c/t ratios are specified in the standard for straight cross-section parts. There are no normative specifications for curved cross-section parts; therefore, the cross-section classification cannot be performed for these cross-section parts.
![Entering Intermediate Lateral Restraint in Center of Member 1](/en/webimage/010537/2968407/1_Intermediate_lateral_restraint_in_the_middle_of_beam_1.png?mw=512&hash=b59e15e6f9f5b251a280addda3968092369a2f14)
The support conditions of a beam subjected to bending are essential for its resistance to lateral-torsional buckling. If, for example, a single-span beam is held laterally in the middle of the span, the deflection of the compressed flange can be prevented, and a two-wave eigenmode can be enforced. The critical lateral-torsional buckling moment is increased significantly by this additional measure. In the add-on modules for member design, different types of lateral supports on a member can be defined using the "Intermediate supports" input window.
