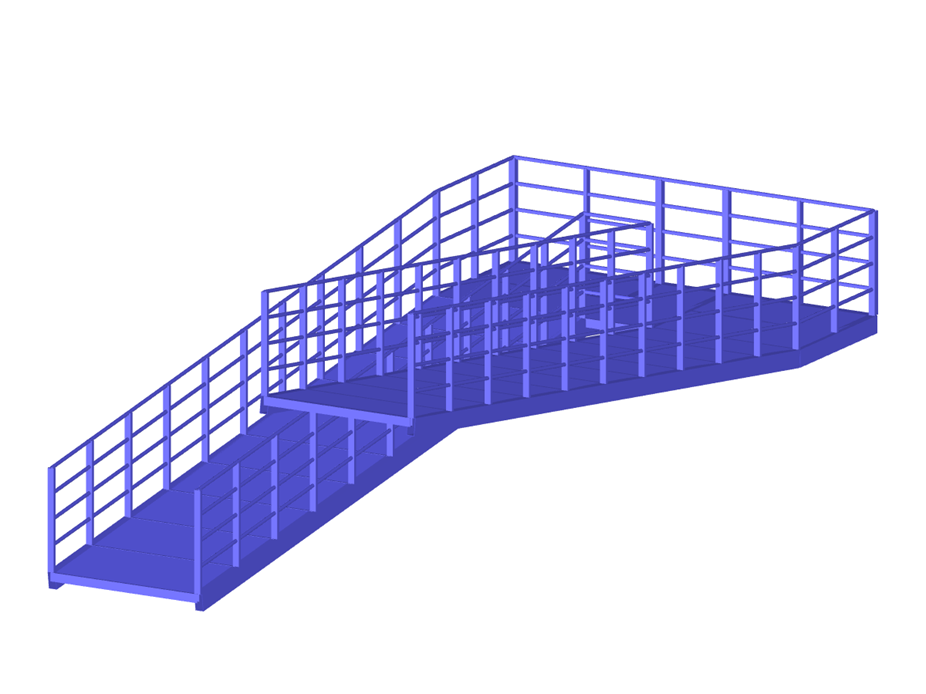

Parameterisation of the geometry of an u-shaped access ramp with handrails, in two spans with intermediate landing. Including surface and handrail loads.
Model created by the Dlubal Latam engineering team. The model is also available as a parameterized block on the Dlubal Latam website.
U-Shaped Ramp with Landing
| Block parameters editable dynamically | |
| Number of Nodes | 290 |
| Number of Lines | 179 |
| Number of Members | 179 |
| Number of Surfaces | 5 |
| Number of Load Cases | 3 |
| Total Weight | 8.306 tons |
| Dimensions (Metric) | 5.400 x 12.017 x 4.320 m |
| Dimensions (Imperial) | 17.72 x 39.43 x 14.17 feet |
| Program Version | 5.26.02 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
