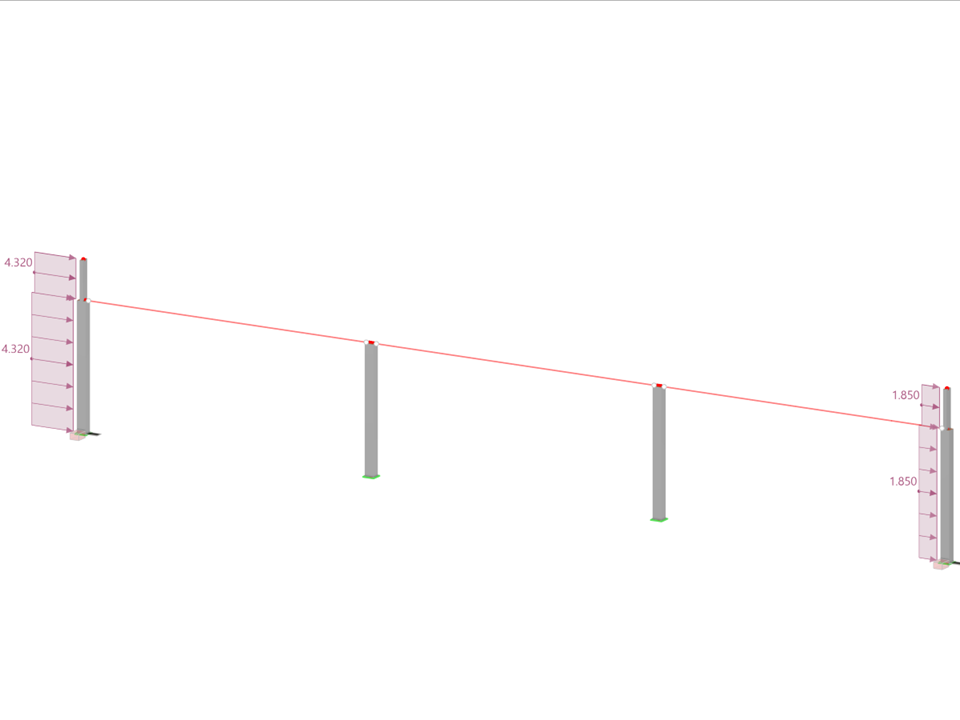

Concrete column designed by means of the nominal curvature method
Model Used in
Verification Example 1000 | Concrete Column with Nominal Curvature Method
| Number of Nodes | 16 |
| Number of Lines | 15 |
| Number of Members | 15 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 3 |
| Number of Load Combinations | 11 |
| Number of Result Combinations | 0 |
| Total Weight | 11.806 tons |
| Dimensions (Metric) | 45.000 x 8.100 x 0.000 m |
| Dimensions (Imperial) | 147.64 x 26.57 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
