The concrete block with prestress element is an innovative solid element for simulating prestressed structures. The model precisely processes parameters such as prestress, contact, surface release and contact solids, enabling a realistic analysis. This integration allows for a detailed analysis of the load behavior and material deformation under dynamic and static load cases. The structural element thus provides a powerful tool for optimizing structural solutions.
Overall
This page has 0 user ratings.
| 5 star | ||
| 4 star | ||
| 3 star | ||
| 2 star | ||
| 1 star |

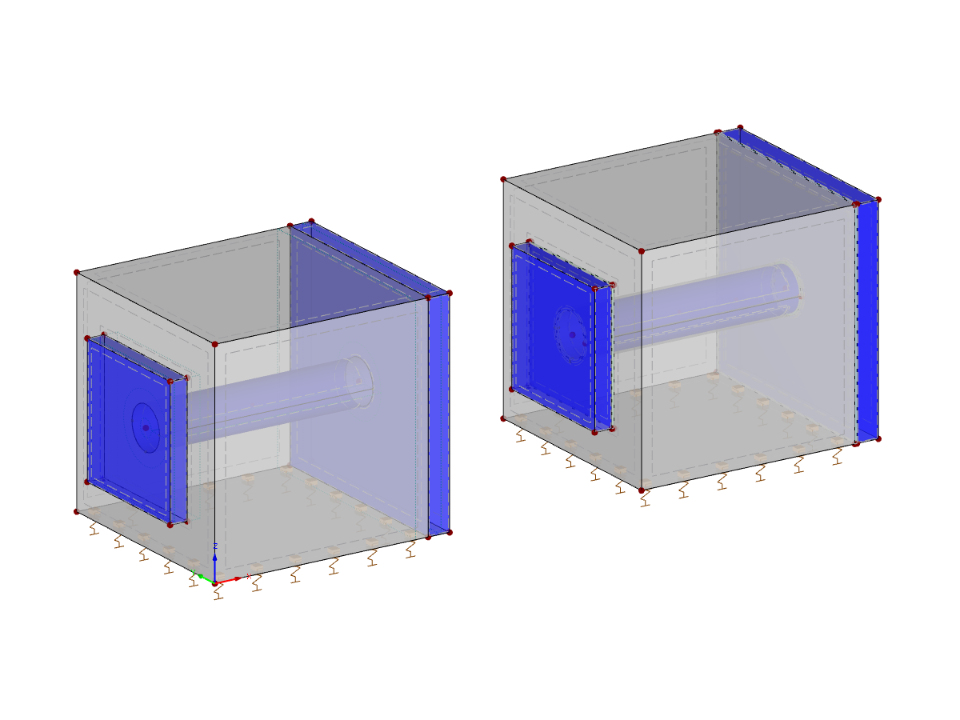

Prestress Element of Concrete Block
| Number of Nodes | 96 |
| Number of Lines | 108 |
| Number of Surfaces | 58 |
| Number of Solids | 7 |
| Number of Load Cases | 2 |
| Total Weight | 7,236 t |
| Dimensions (Metric) | 3.244 x 1.000 x 1.000 m |
| Dimensions (Imperial) | 10.64 x 3.28 x 3.28 feet |
| Program Version | 5.27.00 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
