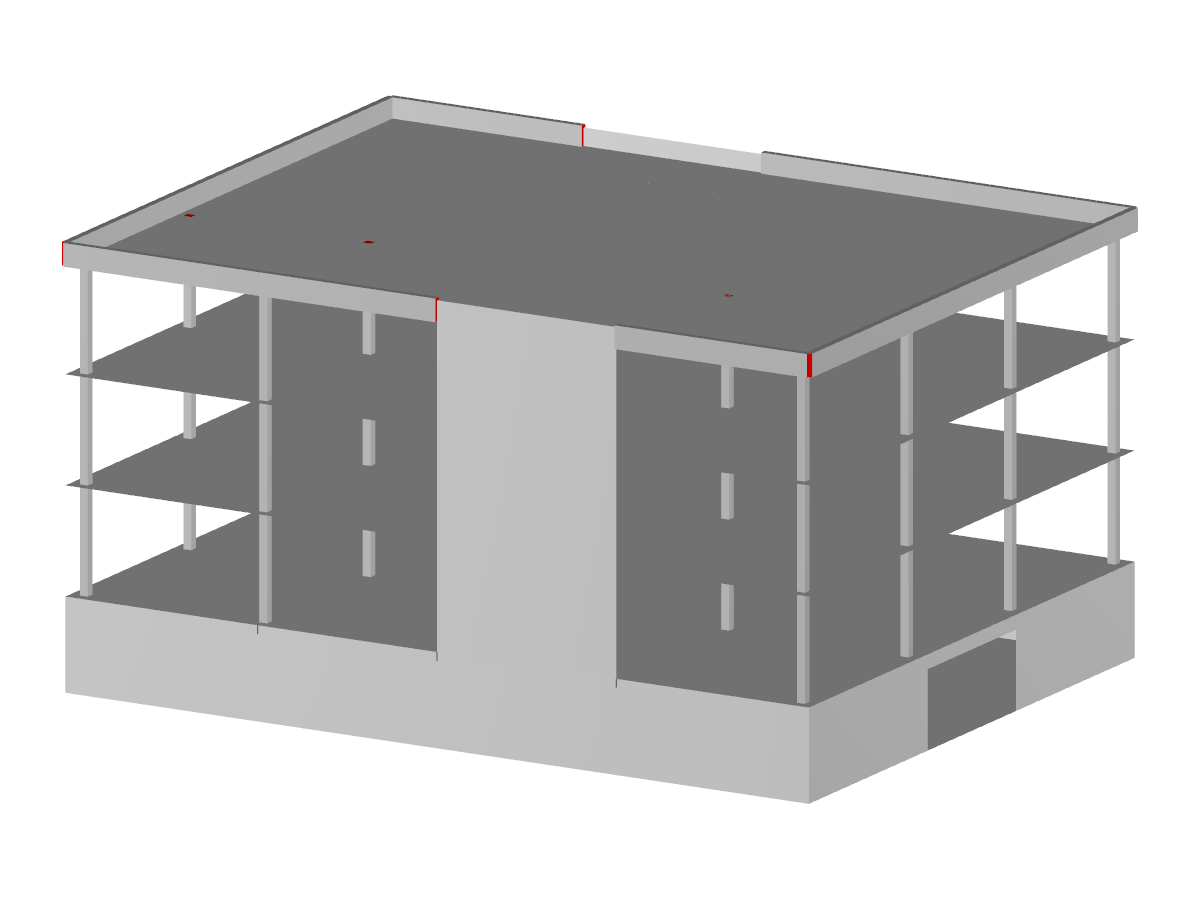

The model describes a four-storey reinforced concrete building that serves as a typical example of modern concrete structures. It illustrates the structural relationships between concrete and steel, as well as the implementation of high-strength material concepts. The display provides detailed insights into the structural components and their connections. In addition, the image provides a frontal view that precisely highlights the essential structural features.
Model Used in
Overall
This page has 0 user ratings.
| 5 star | ||
| 4 star | ||
| 3 star | ||
| 2 star | ||
| 1 star |
Four-Story Concrete Building
| Number of Nodes | 248 |
| Number of Lines | 264 |
| Number of Members | 34 |
| Number of Surfaces | 42 |
| Number of Load Cases | 31 |
| Number of Result Combinations | 4 |
| Total Weight | 1284,392 t |
| Dimensions (Metric) | 30.548 x 16.191 x 13.849 m |
| Dimensions (Imperial) | 100.22 x 53.12 x 45.44 feet |
| Program Version | 5.20.00 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
