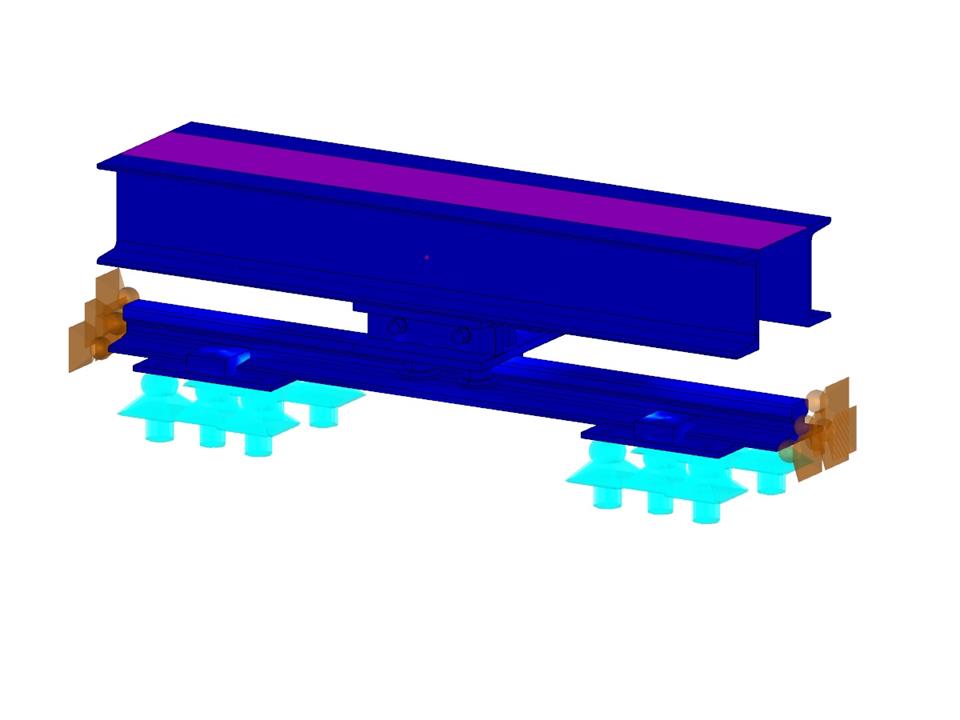

Rail System with Sigma-X Stresses (© AGICEA)
Mechanical Displacement System Design
Number of Nodes | 994 |
Number of Lines | 789 |
Number of Members | 17 |
Number of Surfaces | 345 |
Number of Solids | 33 |
Number of Load Cases | 2 |
Number of Load Combinations | 1 |
Total Weight | 0.080 tons |
Dimensions (Metric) | 1.324 x 0.455 x 0.479 m |
Dimensions (Imperial) | 4.34 x 1.49 x 1.57 feet |
