Question

Is it possible to set user-defined values when viewing solid stress results?


Answer:

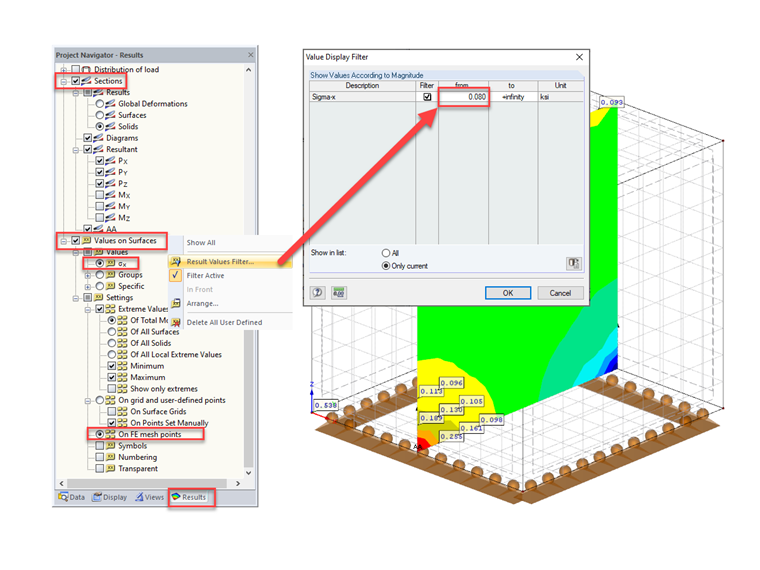

No, it is not possible to set user-defined values when viewing stress results on a solid. These unfortunately do not work like results on a surface. It is possible to activate the result values on each FE Mesh Node using the settings shown below under Values on Surface. To access the filter settings you must right click on the label "Values on Surfaces."

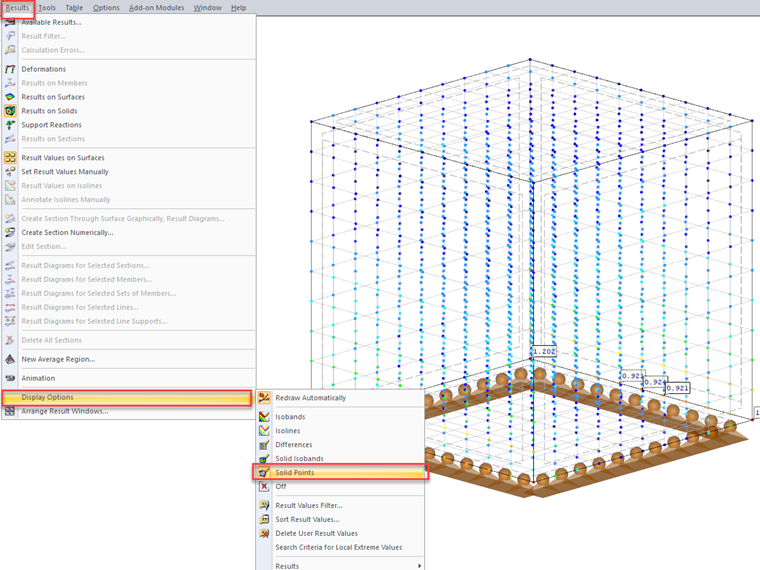

You can then also set your results to Solid Point Display under the Results menu. This will help give a better visual on where those results are located graphically.
