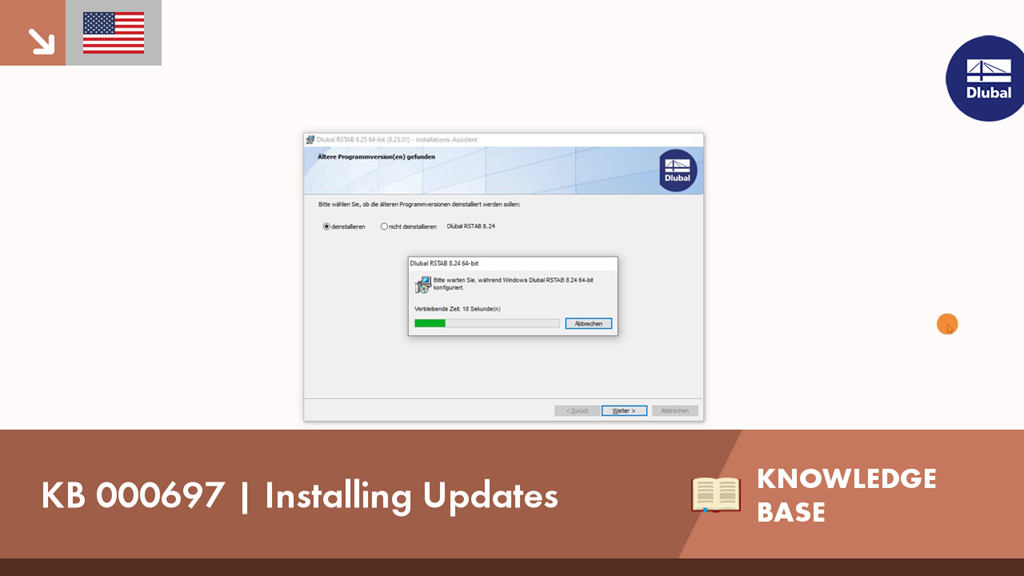

When installing an update within a version series (for example, RFEM 5.01.01 to 5.01.02), the old program files are removed and replaced by new ones. The project data is preserved, of course. If you update to the next version series (for example, RFEM 5.02.01), the new version is installed in parallel. The program files are stored in different directories, so the previous version is still available.
