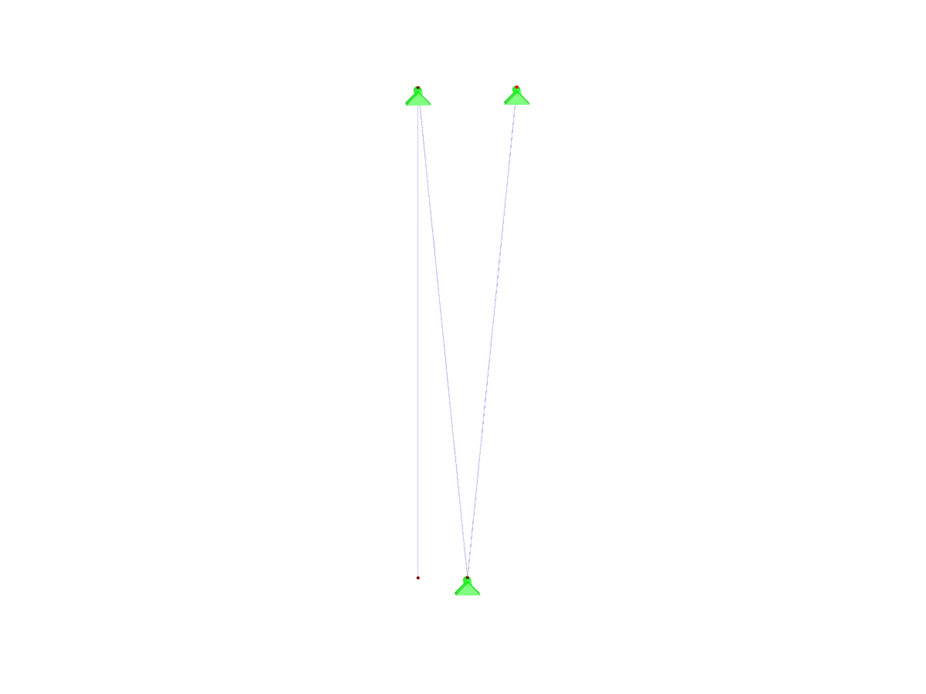

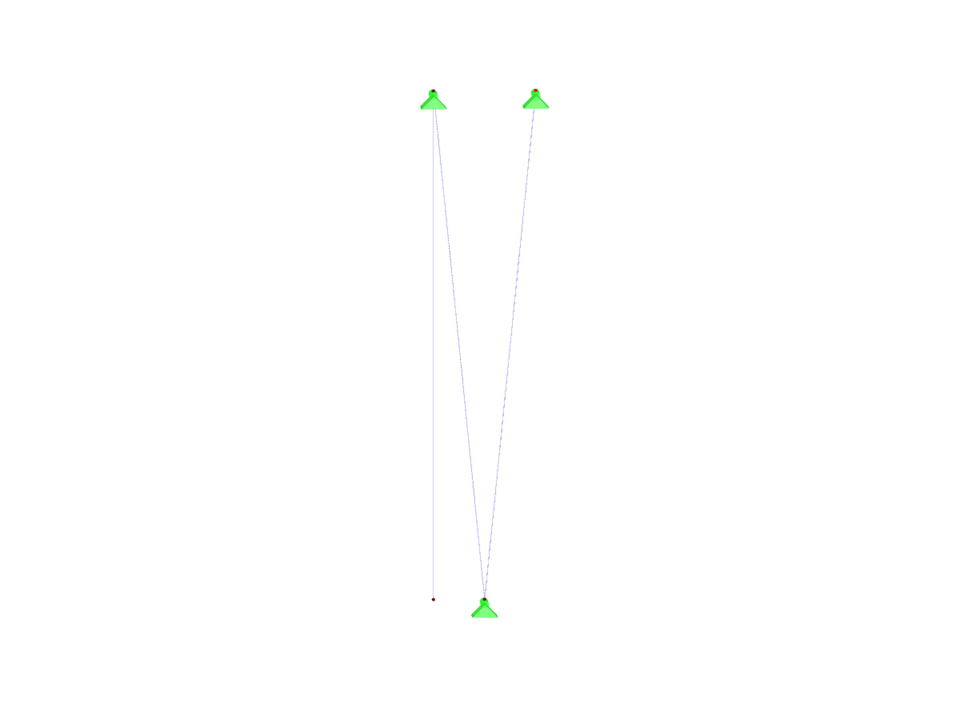

This model shows a pulley system with the cable guided around a pulley to provide a clear view of the mechanism. It provides a precise display of the forces and lifting operations. The structure is ideal for illustrating dynamic cable-on-pulley systems in technical applications.
Model Used in
Overall
This page has 0 user ratings.
| 5 star | ||
| 4 star | ||
| 3 star | ||
| 2 star | ||
| 1 star |
Pulley System
| Number of Nodes | 4 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Load Cases | 1 |
| Total Weight | 0,012 t |
| Dimensions (Metric) | 2.500 x 0.500 x 10.500 m |
| Dimensions (Imperial) | 8.2 x 1.64 x 34.45 feet |
| Program Version | 5.26.02 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
