It is also possible to check the results of specific objects using the control panel. There you can define the members, surfaces, or lines whose results are to be displayed exclusively. In contrast to "visibilities", the model is shown in full view.
Disable all visibilities by clearing the Activate check box in the 'Navigator - Views'.
Frame Girder

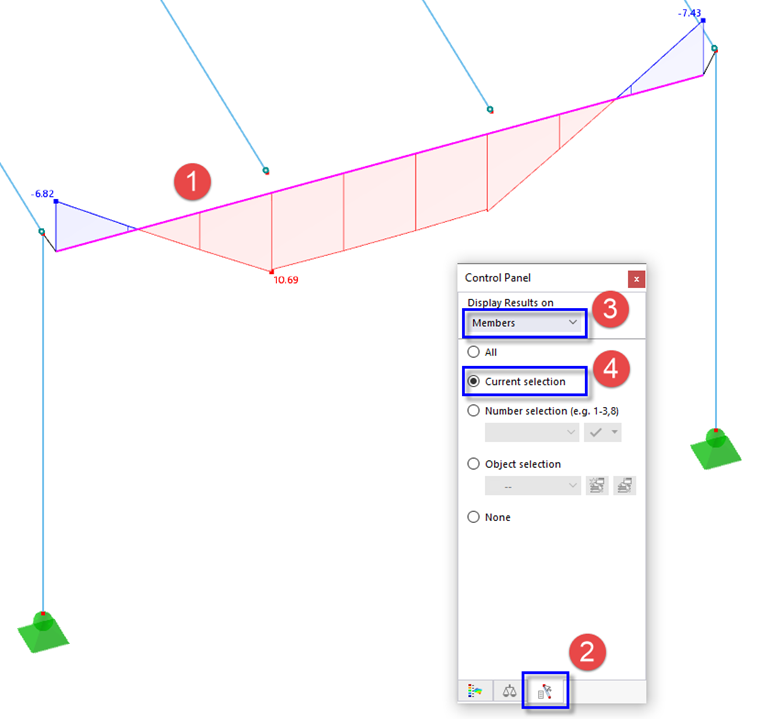

Select the frame girder (member no. 4) by clicking it (1). Then click the
tab of the control panel (2). Make sure that the Members option is set in the 'Display Results on' area (3). Select the Current selection option (4) so only the moments of the selected girder are shown.
To display the bending moments of all members again, select All.
Upper Slab

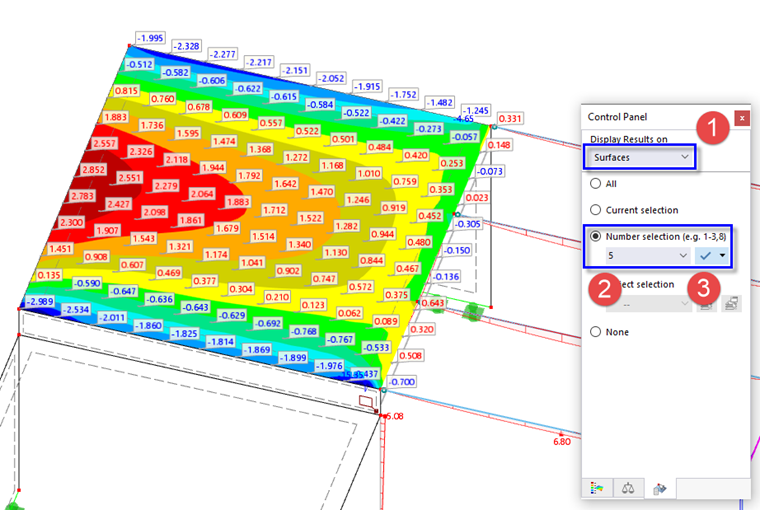

To apply the selection to surfaces, select Surfaces from the list in the 'Display results on' area (1). Then enter the surface no. 5 – the upper slab – in the 'Number selection' box (2). Click the
button to the right of it (or press ENTER) to apply that selection (3).
When you check the 'Surfaces | Basic Stresses' table, you will notice that the results of only this surface are contained.
Reset the view of results by selecting the All option again.
