The data of the structural model has now been defined. To turn the numbering of objects off again, right-click in an empty area of the workspace. Clear Show Numbering in the shortcut menu (see the Displaying Numbering image).
Navigator and Tables

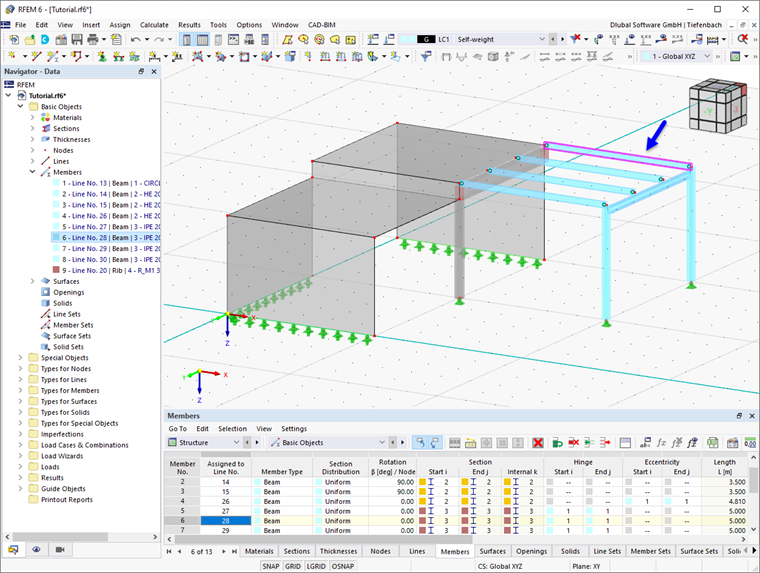

You can find all objects of the model in the 'Navigator - Data' tree and in the tabs of the tables. When you select an item in the navigator or table, this object will be highlighted in the work window so that you can easily locate it.
Plausibility Check

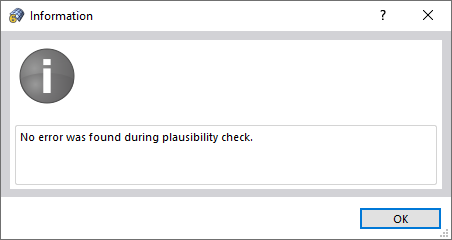

To check the references of all data sets, open the Tools menu and select Plausibility Check. If no inconsistencies are detected, a corresponding message will be shown.
Saving Data
To save the file, open the File menu and select Save. Alternatively, click the
button on the toolbar.

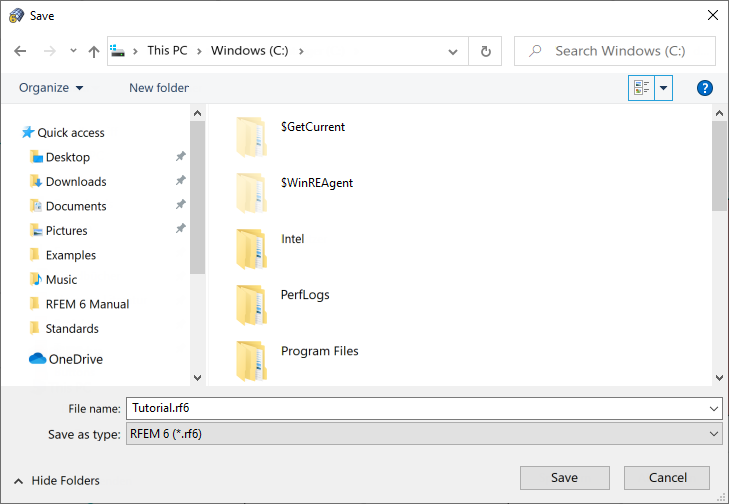

Specify the directory where you want to save the 'Tutorial.rf6' model. Then click Save.
