LC3

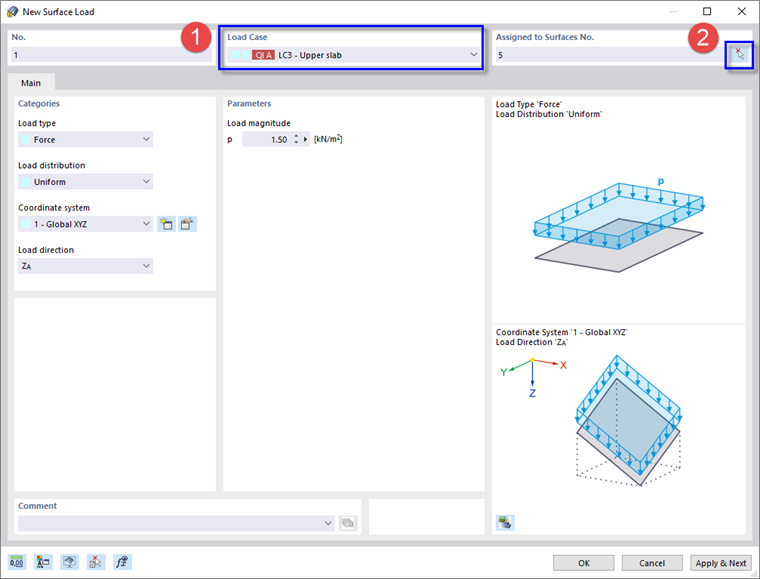

To define the live load of the upper slab, set LC3 in the 'Load Case' area. The load value of 1.5 kN/m² is preset. Click the Select Individually button to set the upper slab (no. 5) this time.

Click OK to close the dialog box. You can then check the loads of the three load cases by using the Next and Previous buttons next to the toolbar list.
