Position of Support Forces for Craneway Girders

Where can I find the determined support forces for the crane runway girder? At the bottom flange of the crane runway girder or in the shear center of the cross-section?

Answer:

Contrary to the graphic display, the CRANEWAY add-on module shows the resulting support forces or the centroid.

FAQ 005017 | Where can I find the determined support forces for the crane runway girder? At the bottom flange of the crane runway girder or in the shear center of the cross-section?

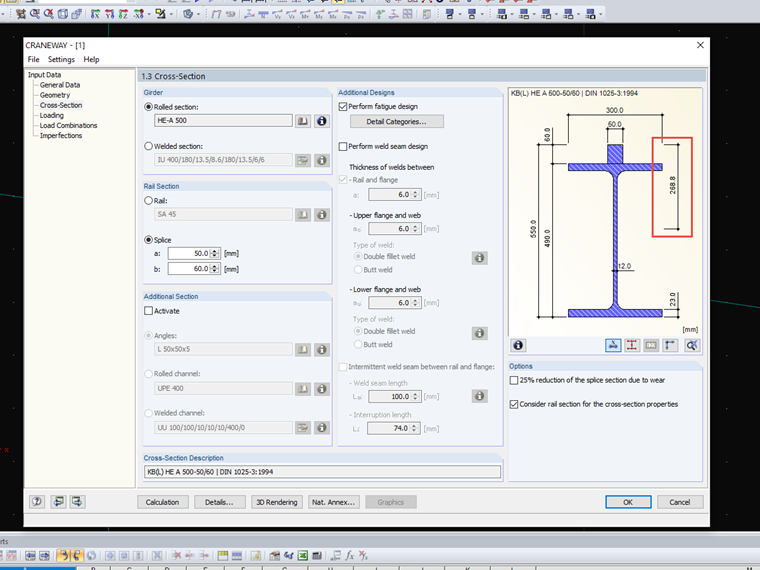

Info About Cross-Section
FAQ 005017 | Where can I find the determined support forces for the crane runway girder? At the bottom flange of the crane runway girder or in the shear center of the cross-section?

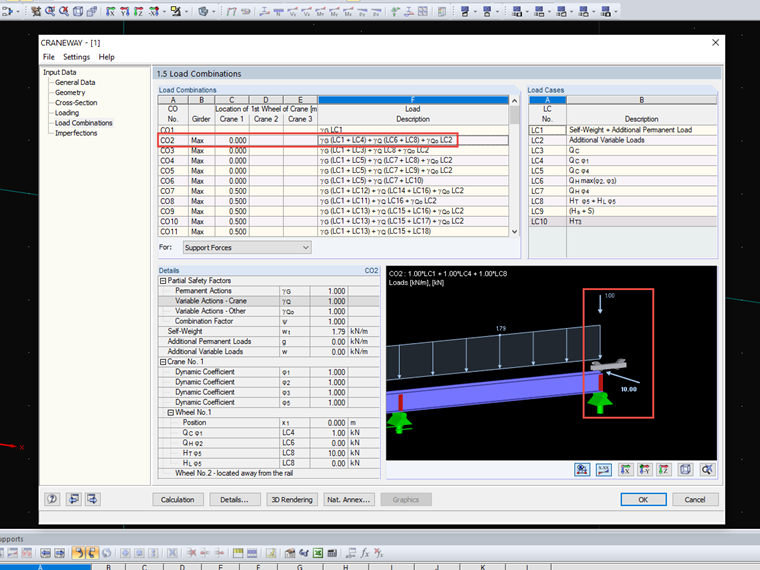

Displaying Load Combinations
FAQ 005017 | Where can I find the determined support forces for the crane runway girder? At the bottom flange of the crane runway girder or in the shear center of the cross-section?
Displaying Support Forces
