Answer:

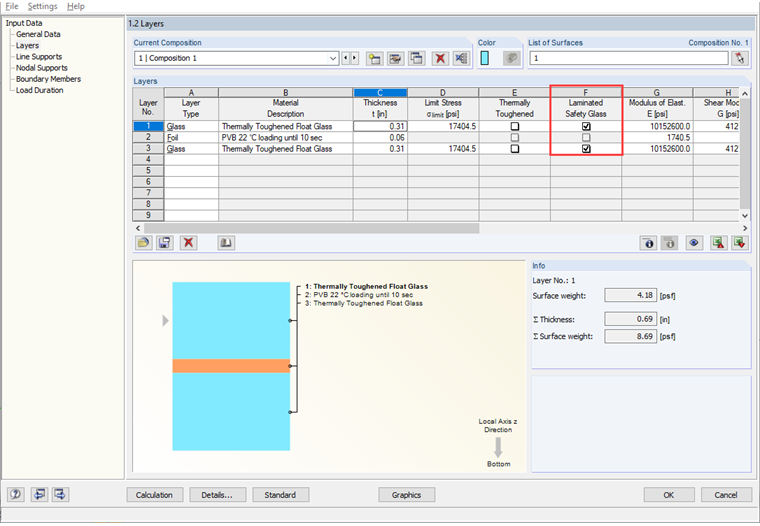

Yes, it is possible to select the "Laminated Safety Glass" check box in Window 1.2 Layers.
As a result, the design value of the load-bearing capacity of the selected material is increased by 10%.
Global Increase of Load-Bearing Capacity of Laminated Safety Glass
Is it possible to increase the arithmetical design resistance of laminated safety glass according to DIN 18008‑1 (8.3.9)?
Author
Mr. Lex is responsible for developing products for glass structures and for quality assurance of the RFEM program. He also provides technical support for our customers.
