Wind power plant with a truss segment made of fiber-reinforced molded timber pipes
Structural Design:
Technical University of Dresden
tu-dresden.de

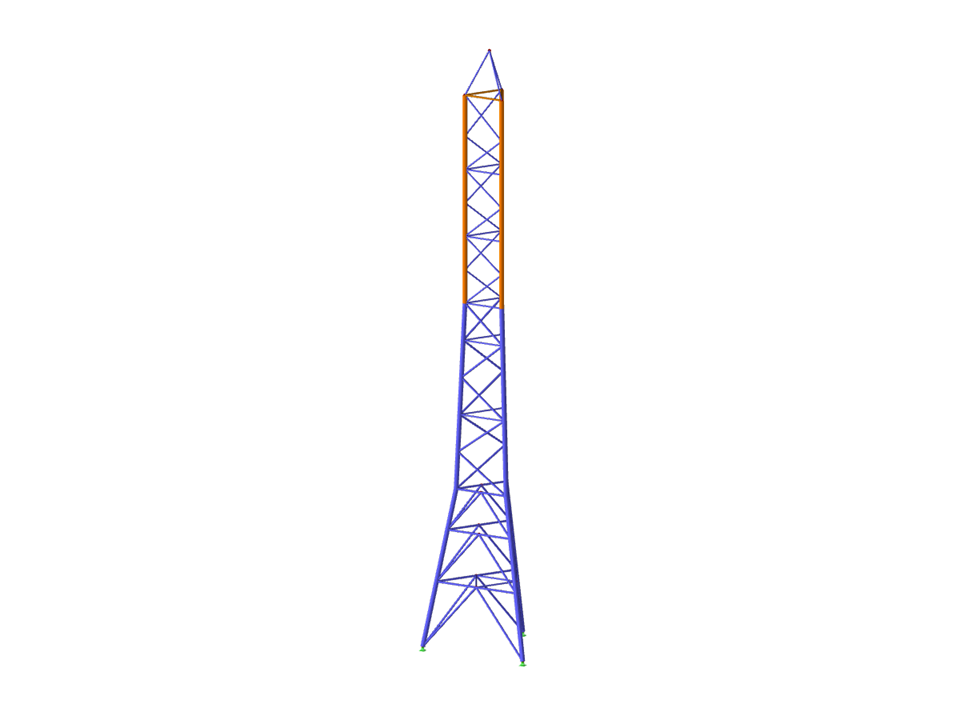

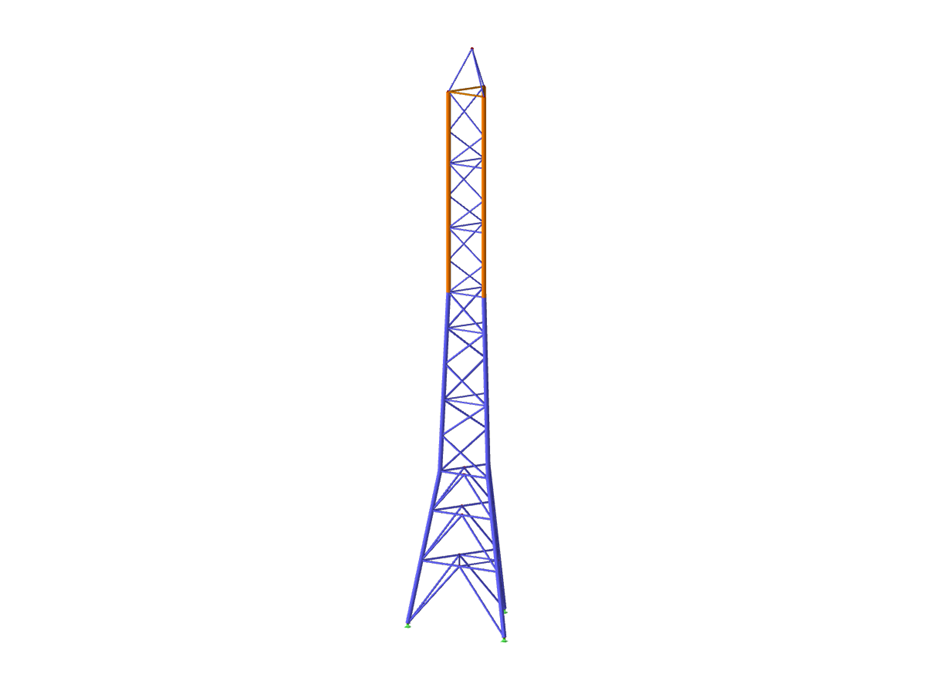

Tower with Truss Segment Made of Fiber-Reinforced Molded Timber Pipes
No Download Possible
Customer Project / View Only
Number of Nodes | 55 |
Number of Members | 135 |
Number of Load Cases | 3 |
Number of Load Combinations | 4 |
Total Weight | 8.397 tons |
Dimensions (Metric) | 6.313 x 5.512 x 32.236 m |
Dimensions (Imperial) | 20.71 x 18.08 x 105.76 feet |
Program Version | 8.25.01 |
