In 2016, NEDCON was commissioned to assemble the steel structure for two fully automatic distribution centers, one in Michigan (USA) and one in Alberta (Canada). The 3D model of the racking system was created in RFEM and shows precise details of the steel and scaffolding structure. NEDCON, part of the international steel group voestalpine since 2004, produces innovative storage systems at its site in Pardubice. NEDCON B.V. represents the company that holds the copyright to this model. The model illustrates modern design solutions in steel structures for demanding logistics projects.

Overall
0 out of 5 stars
This page has 0 user ratings.
5 star
4 star
3 star
2 star
1 star
(0)
0 out of 5 stars
5 star 0
4 star 0
3 star 0
2 star 0
1 star 0

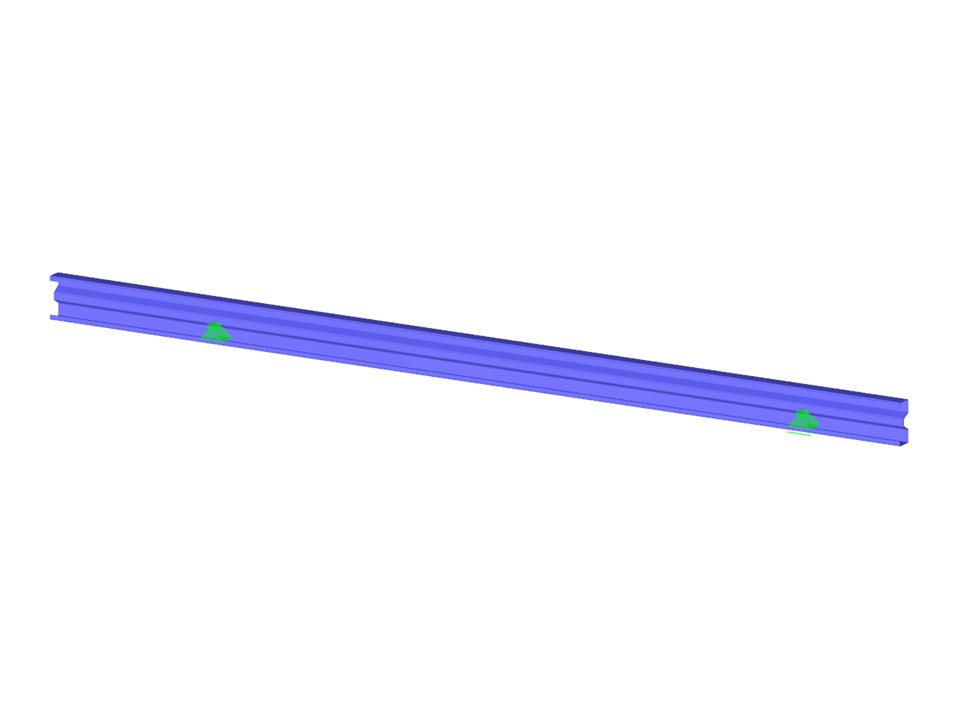

Steel Beam for Fully Automated Distribution Center

No Download Possible Customer Project / View Only
Number of Nodes 4
Number of Lines 3
Number of Members 3
Number of Load Cases 2
Number of Load Combinations 1
Total Weight 0,015 t
Dimensions (Metric) 2.800 x 0.005 x 0.002 m
Dimensions (Imperial) 9.19 x 0.02 x 0.01 feet
Program Version 5.06.30
