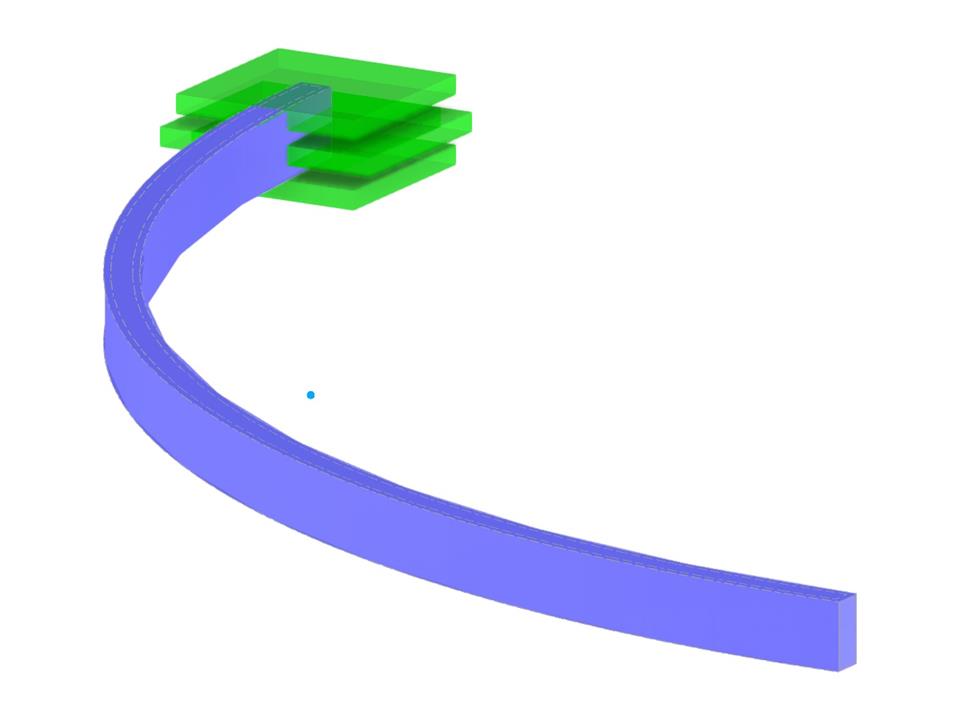

A quarter-circle beam with a rectangular cross-section is loaded by means of an out-of-plane force. This force causes a bending moment, torsional moment and a transverse force. While neglecting self-weight, determine the total deflection of the curved beam.
Model Used in
Verification Example 000086 | 4
| Number of Nodes | 39 |
| Number of Lines | 54 |
| Number of Surfaces | 20 |
| Number of Solids | 1 |
| Number of Load Cases | 1 |
| Total Weight | 0.015 tons |
| Dimensions (Metric) | 1.013 x 1.013 x 0.050 m |
| Dimensions (Imperial) | 3.32 x 3.32 x 0.16 feet |
| Program Version | 5.12.02 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
