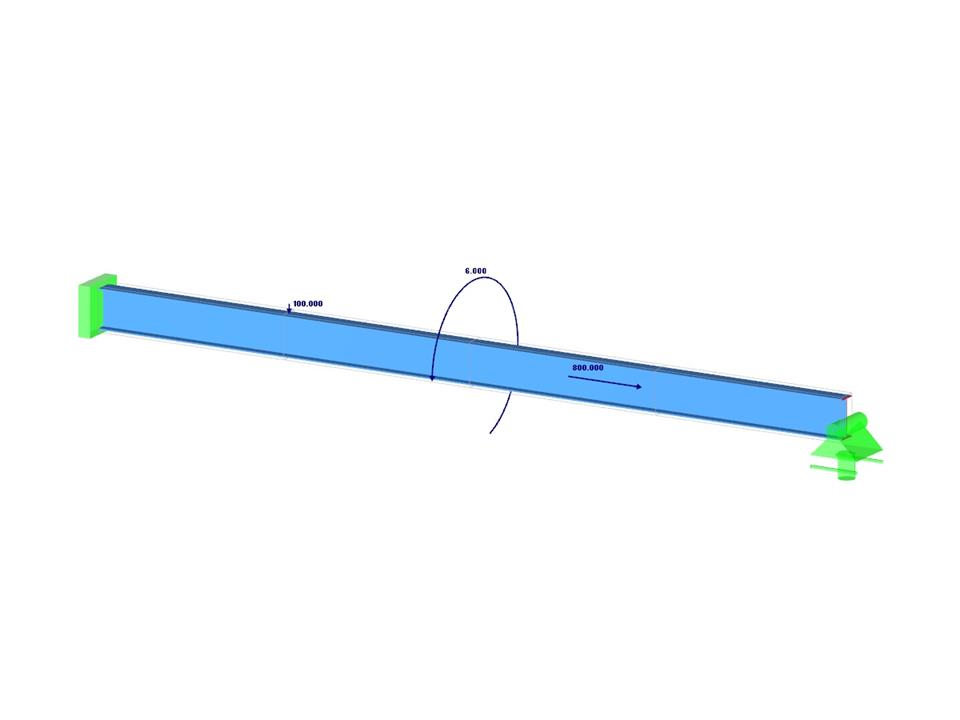

A beam is fully fixed (warping is restraint) on the left end and supported by the fork support (warping is enabled) on the right end. The beam is subjected to a torque, longitudinal force and transverse force.
Verification Example 000049 | 2
Number of Nodes | 5 |
Number of Lines | 4 |
Number of Members | 4 |
Number of Surfaces | 0 |
Number of Solids | 0 |
Number of Load Cases | 1 |
Number of Load Combinations | 0 |
Number of Result Combinations | 0 |
Total Weight | 0.550 tons |
Dimensions (Metric) | 8.000 x 0.000 x 0.000 m |
Dimensions (Imperial) | 26.25 x 0 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
