glTF Models in RFEM 5 and RSTAB 8

As of the versions of RFEM 5.23 and RSTAB 8.23, glTF models can be exported or saved. What are they?

Answer:

A glTF file contains a 3D model that is saved in "GL Transmission Format" (glTF). This 3D model can be viewed in any glTF viewer or, for example, integrated into your own web pages using JavaScript. You can rotate the model by holding down the mouse button or zoom it using the mouse wheel. You can see an example here:

Timber Hall on Reinforced Concrete Floor Slab
5775x
356x
Timber Hall on Reinforced Concrete Base Plate

This 3D model is saved with the RFEM or RSTAB file by default. However, you can also export it separately (see Image 01).
You can find more examples on our homepage under Downloads → Models for Download (see the link below this FAQ).

FAQ|004651
EN-US | Flag FAQ
[EN] FAQ 004651 | As of version X.23, glTF models can be exported or saved ...

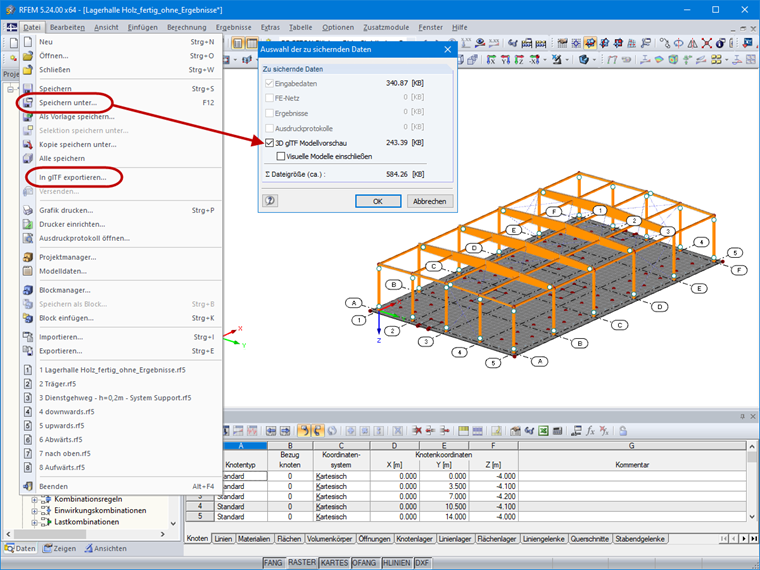

Options for Creating glTF Model
Options for Creating glTF Model
Author

Mr. Rehm is responsible for developing products for timber structures, and he provides technical support for customers.
