The interface to Autodesk Revit is automatically installed during installation of RFEM or RSTAB. A subsequent installation of the plug‑in is possible through the execution of Revit-Installer.exe.

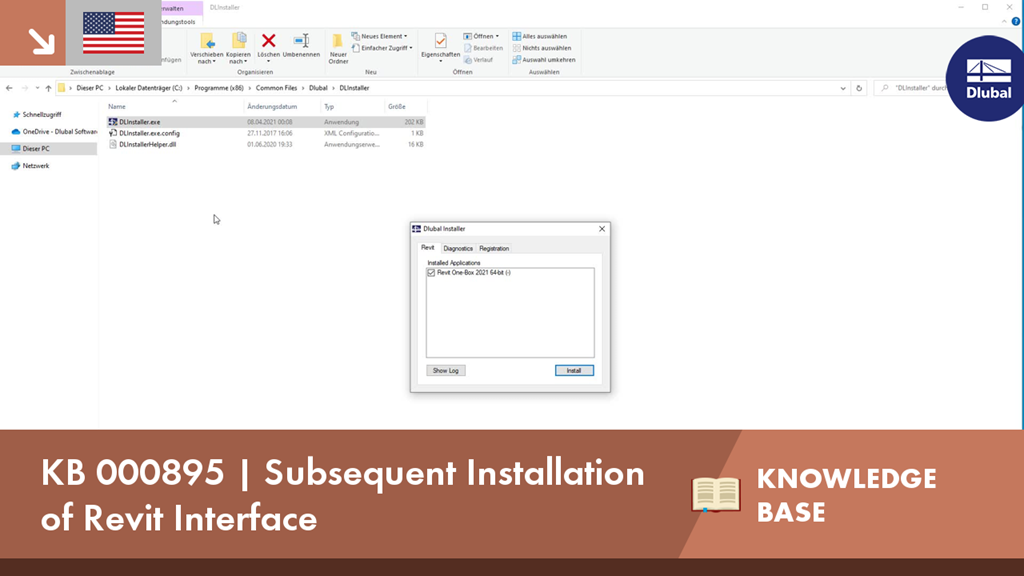

KB 000895 | Subsequent Installation of Revit Interface
