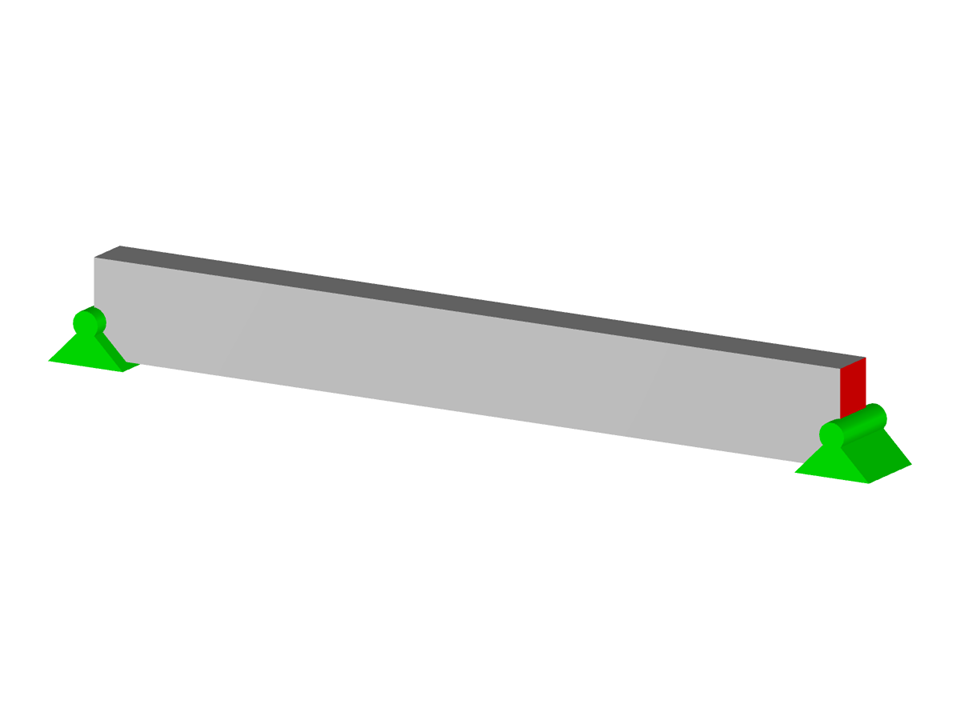

Reinforced Concrete Beam
  • Description
  • Reviews (0)

This model shows a reinforced concrete beam in which the applied shear force used for the shear design is documented. The precise display shows how the acting forces are arranged and which design concepts are used. The integrated graphics visualize the essential structural components and support the understanding of the shear force analysis.

Model Used in
Overall
0 out of 5 stars
This page has 0 user ratings.
5 star
4 star
3 star
2 star
1 star
(0)
0 out of 5 stars
5 star 0
4 star 0
3 star 0
2 star 0
1 star 0

Reinforced Concrete Beam | Shear Force Documentation

Number of Nodes 2
Number of Lines 1
Number of Members 1
Number of Load Cases 3
Number of Load Combinations 3
Total Weight 2.250 t
Dimensions (Metric) 5.960 x 0.960 x 0.960 m
Dimensions (Imperial) 19.55 x 3.15 x 3.15 feet
Program Version 5.23.02

You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
