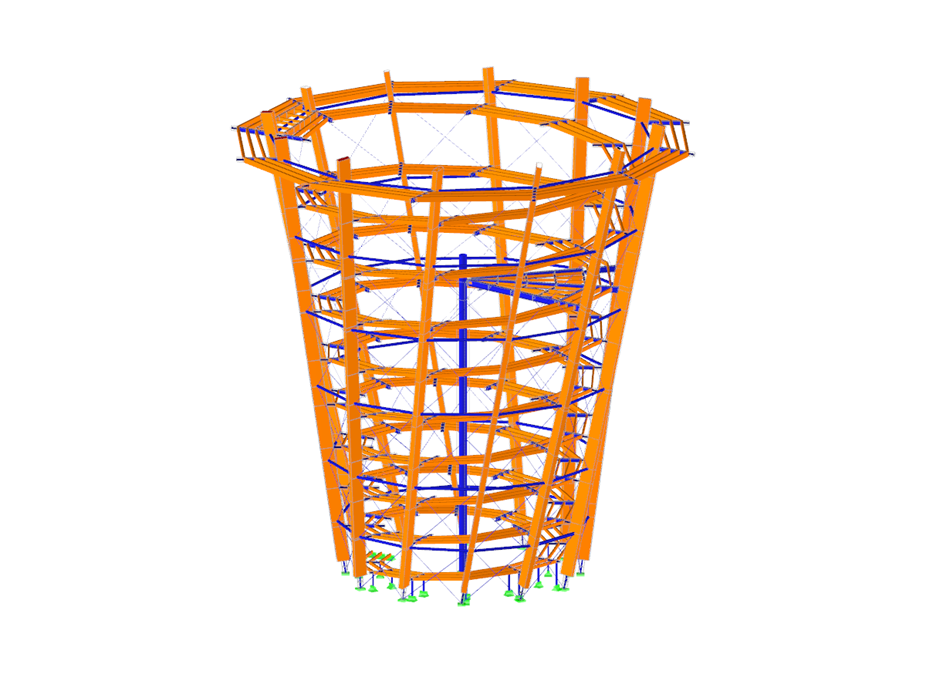

The 3D model of the lookout tower, calculated in RSTAB, illustrates the second adventure trail of the eak in the Czech Republic. At 1500 m in length, the path winds through a mixed mountain forest to a tower about 43 m high, whose platform provides a wide view of the national park. The descent is via a barrier-free ramp or an 80-meter tunnel slide. An artificially created root cave provides insights into nature below the surface. The design, structural engineering, manufacturing and assembly were carried out by http://www.wiehag.com/ WIEHAG GmbH (© WIEHAG GmbH).
5 star | ||
4 star | ||
3 star | ||
2 star | ||
1 star |
Lookout tower of Treetop Walkway in Giant Mountains
Number of Nodes | 1078 |
Number of Members | 1751 |
Number of Load Cases | 22 |
Number of Load Combinations | 200 |
Number of Result Combinations | 11 |
Dimensions (Metric) | 40.142 x 40.142 x 41.103 m |
Dimensions (Imperial) | 131.7 x 131.7 x 134.85 feet |
Program Version | 8.09.01 |




After generating the effective lengths, the results are displayed in clearly arranged tables. You can modify the effective lengths manually there.
The Export function transfers the effective lengths to the RF-/TOWER Design add-on module for further calculation. The complete module data are part of the RFEM/RSTAB printout report. The report contents and the extent of the results can be selected specifically for the individual designs.

Finally, it is possible to export the generated model to RFEM/RSTAB with a single mouse click.
The complete module data are part of the RFEM/RSTAB printout report. The report contents and the extent of the results can be selected specifically for the individual designs.

The results are displayed in clearly arranged module windows. In addition to the design data, the results include all design-relevant parameters. A parts list is generated automatically during the calculation.
The complete module data are part of the RFEM/RSTAB printout report. The report contents and the extent of the results can be selected specifically for the individual designs.

When performing the design of tension, compression, bending, and shear loading, the module compares the design values of the maximum load capacity to the design values of the actions. If the components are subjected to both bending and compression, the program performs an interaction. You can determine the factors according to Method 1 (Annex A) or Method 2 (Annex B).
The flexural buckling design requires neither the slenderness nor the elastic critical buckling load of the governing buckling case. The module automatically calculates all required factors for the bending stress design value. RF-/TOWER Design determines the effective critical moment for lateral-torsional buckling for each member on every x-location of the cross-section.
