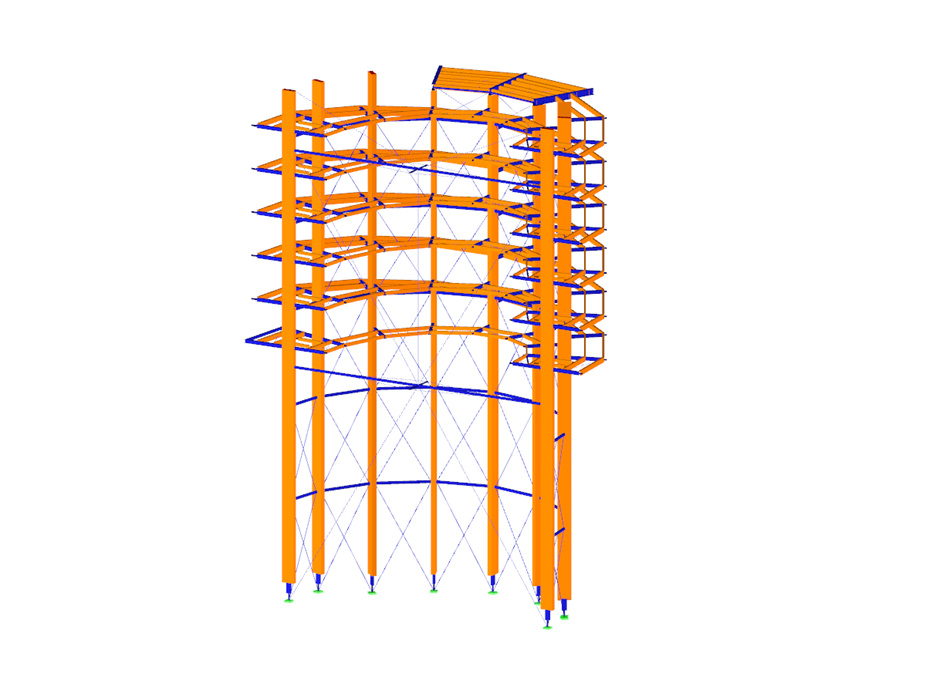

The 42-meter-high Saarschleife lookout tower provides a unique view of the Saar-Hunsrück Nature Park and the Saarschleife Valley, with a view that extends as far as the Vosges. The tower is part of a 1,250-meter-long tree-top trail and was designed as a semicircle to minimize the impact on the surrounding nature. WIEHAG GmbH was responsible for the design and structural analysis of the timber tower using RSTAB. For more information, visit [http: //www.wiehag.com www.wiehag.com].
Model Used in
Overall
This page has 0 user ratings.
| 5 star | ||
| 4 star | ||
| 3 star | ||
| 2 star | ||
| 1 star |
Saarschleife Lookout Tower
No Download Possible
Customer Project / View Only
| Number of Nodes | 868 |
| Number of Members | 1293 |
| Number of Load Cases | 17 |
| Number of Load Combinations | 470 |
| Number of Result Combinations | 7 |
| Dimensions (Metric) | 31.863 x 19.182 x 44.450 m |
| Dimensions (Imperial) | 104.54 x 62.93 x 145.83 feet |
| Program Version | 8.11.01 |
