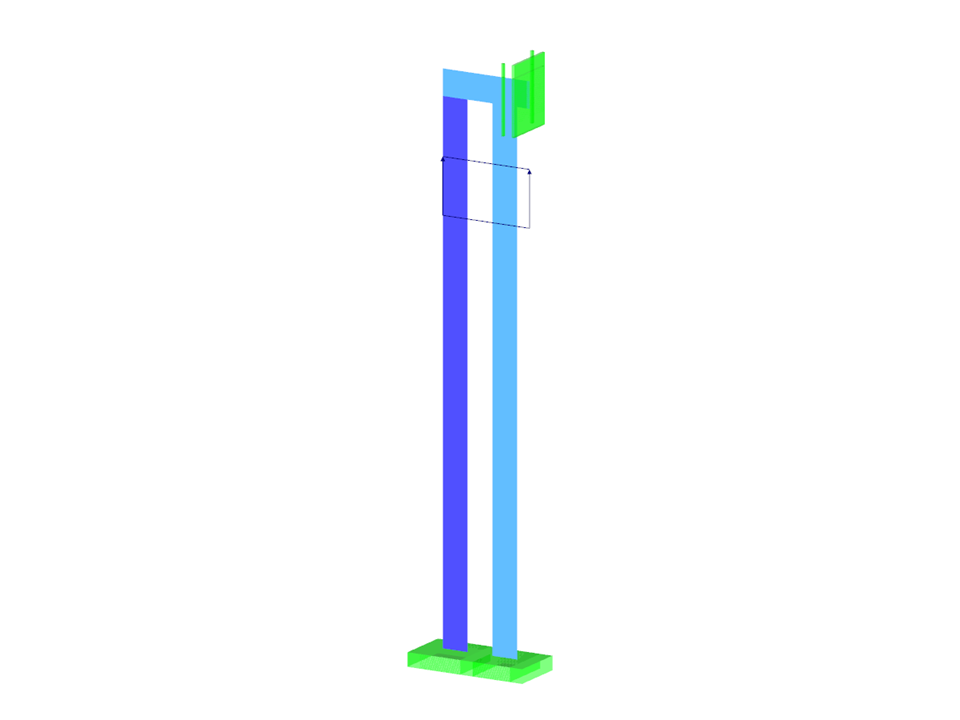

Determination of the maximum deflection of the four columns fixed at the bottom and connected by the rigid block at the top. Block is loaded by pressure and modeled by an elastic material with a high modulus of elasticity. Outer columns are modeled as orthotropic elastic material and inner columns as orthotropic elastic-plastic material with the same elastic parameters as outer columns and with plasticity properties defined according to the Tsai-Wu plasticity theory.
Verification Example 000010 | 2
Number of Nodes | 11 |
Number of Lines | 13 |
Number of Surfaces | 3 |
Number of Load Cases | 1 |
Dimensions (Metric) | 0.175 x 0.000 x 1.050 m |
Dimensions (Imperial) | 0.57 x 0 x 3.44 feet |
Program Version | 5.03.00 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
