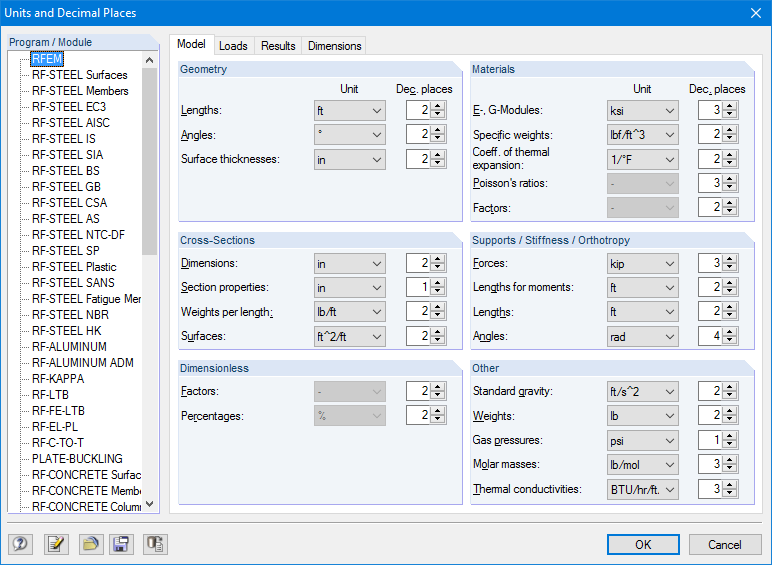

A global dialog box manages the units of input data, loads, and results in RFEM/RSTAB as well as in all add‑on modules.
Take advantage of the helpful functions offered below: You can save your settings and import them again later. Thus, it is possible for you to use different sections in steel and concrete structures, for example.
Product Feature
.png?mw=512&hash=4a84cbc5b1eacf1afb4217e8e43c5cb50ed8d827)
In RFEM 6, there is an option of a hierarchical control between the load transfer surfaces and floors in Building Model. This also allows you to create walls made of load transfer surfaces in order to consider curtain walls in the facade, for example.
When generating shear walls and deep beams, you can assign not only surfaces and cells, but also members.
The building model is calculated in two phases:
After the calculation, the results of the columns and walls from the 3D calculation and the results of the slabs from the 2D calculation are combined in a single model. This means that there is no need to switch between the 3D model and the individual 2D models of the slabs. The user only works with one model, saves valuable time, and avoids possible errors in the manual data exchange between the 3D model and the individual 2D ceiling models.
The vertical surfaces in the model can be divided into shear walls and opening lintels. The program automatically generates internal result members from these wall objects, so they can be designed as members according to any standard in the Concrete Design add-on.
Several modeling tools are available for elements in building models:
This feature allows you to define the element on the ground plane (for example, with a background layer) with the associated multiple element creation in space.
