Answer:

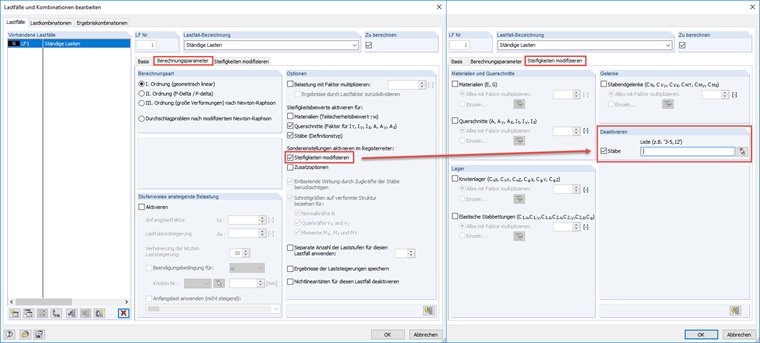

This option for members is also available in RSTAB. You can activate it in "Calculation Parameters" of a load case, under "Modify Stiffness".
Deactivating Objects
In RFEM, I have the possibility to deactivate objects of a structure. Is this option also available in RSTAB?
