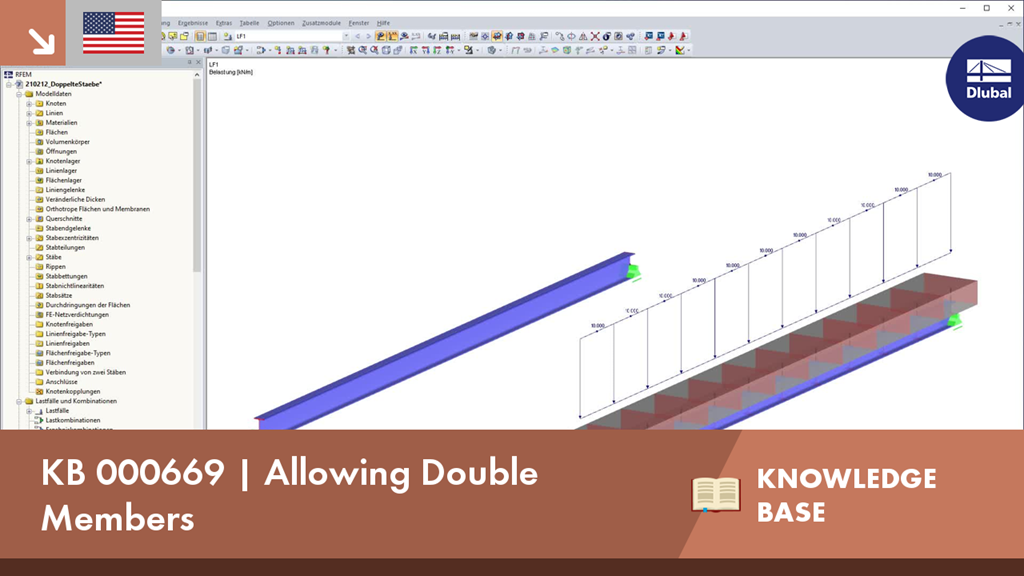

KB 000669 | Allowing Double Members

Generally, overlapping members in the model are not desired. To prevent RFEM or RSTAB from deleting an already defined member if another member is placed upon it, select "Allow Double Members" on the "Edit" menu.
