This model serves as a verification example for assessing the shear strength of an ASTM A992 W 24×62 beam under strong axis shear, as per AISC 2022 guidelines. The beam is subjected to end shears of 48.000 kips from dead loads and 145.000 kips from live loads. The analysis is conducted using both LRFD and ASD methods to ensure compliance with the specified standards.

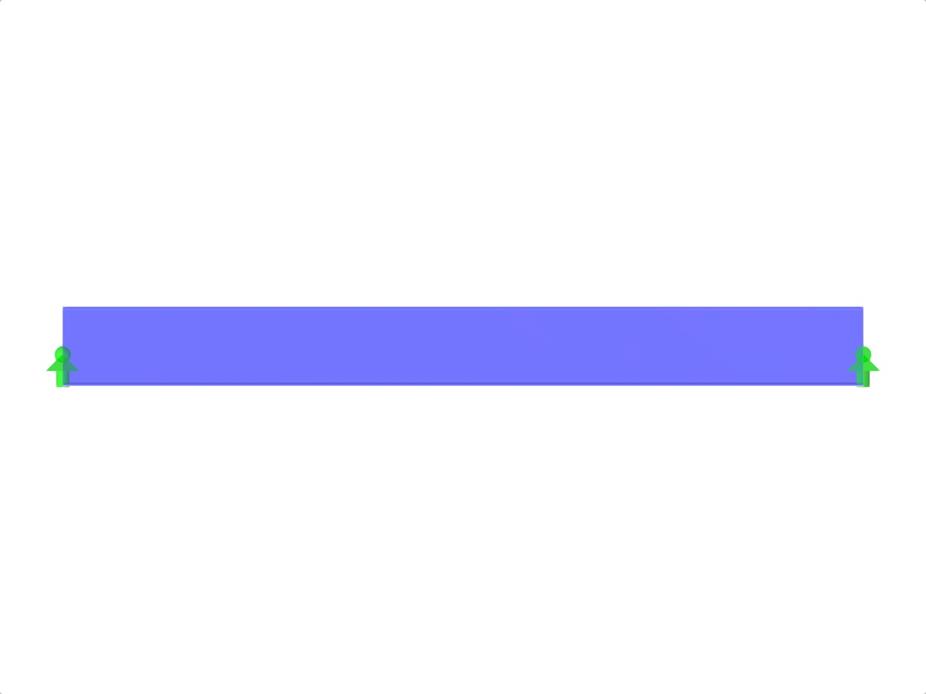

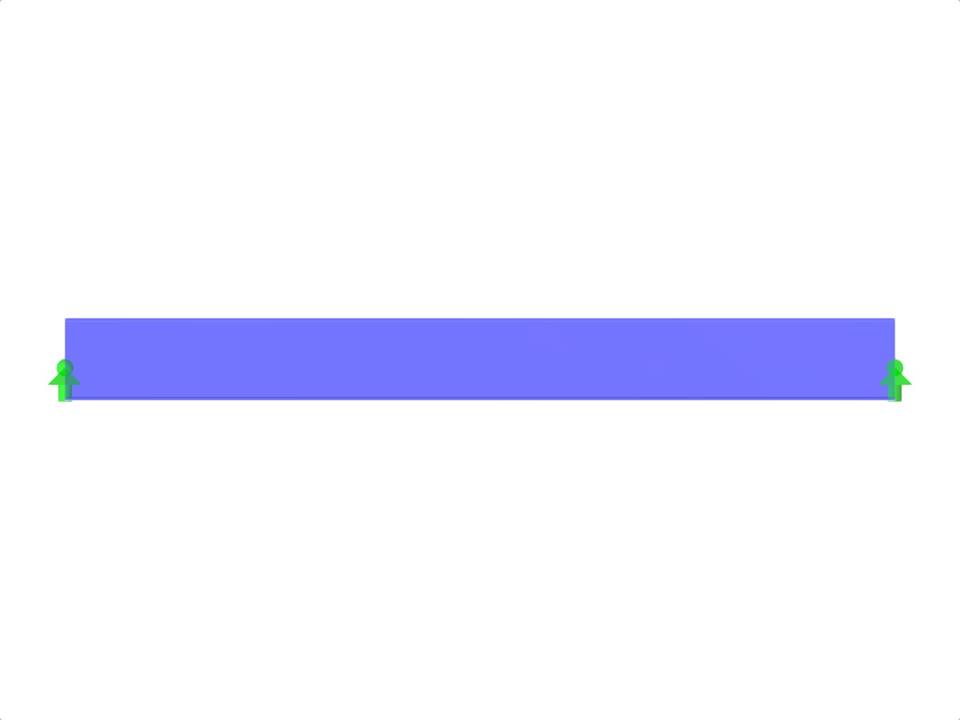

Verification Example 1033 | Shear Strength in W-Shape Beam Acc. to AISC 2022
| Number of Nodes | 2 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 2 |
| Number of Result Combinations | 0 |
| Total Weight | 0.794 tons |
| Dimensions (Metric) | 10.668 x 0.000 x 0.000 m |
| Dimensions (Imperial) | 35 x 0 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
