FAQ 005666 | Merging Several Members into One Member and Converting Existing Nodes into Nodes on Member

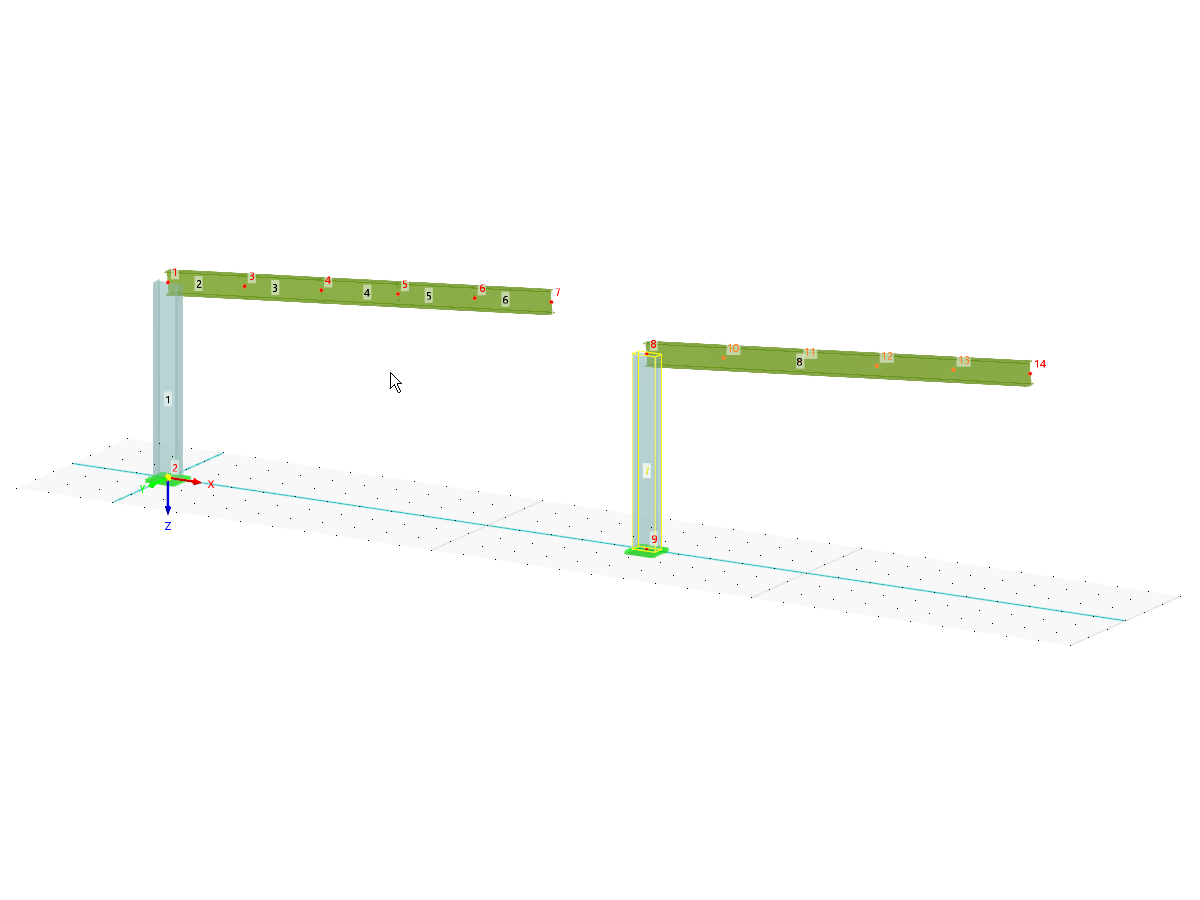

Merging members | Variant 1 with many members and Variant 2 with a single member

The display illustrates the merging of several members into a single element, with the existing nodes being converted into nodes on member. Two variants are compared: Variant 1 shows a structure with many members, while Variant 2 models a single member. Technical drawing symbols clearly identify the fasteners.

FAQ 005666
Merge members
Node conversion
Variant 1 with multiple members
Variant 2 with single member
