Building Information Modeling (BIM) | Nemetschek Allplan

Dlubal Software has set a goal to allow you to plan according to BIM. And this mission was undoubtedly successful!

Due to the numerous interfaces in the structural analysis programs RFEM and RSTAB, you can easily and conveniently exchange data with the common industry software (such as CAD programs).

With the file format ASF from Nemetschek, RFEM 6 supports a popular CAD program. Thus, you have various options for the data exchange.

Our Solution for You:

Subnavigation
01
What is BIM?
02
Tekla Structures
03
Autodesk Revit
04
Autodesk AutoCAD
05
Nemetschek Allplan
06
Rhino & Grasshopper
07
Bentley ISM
08
SCIA Engineer
09
Other (Programs)
Import options in RFEM 6

Import in RFEM

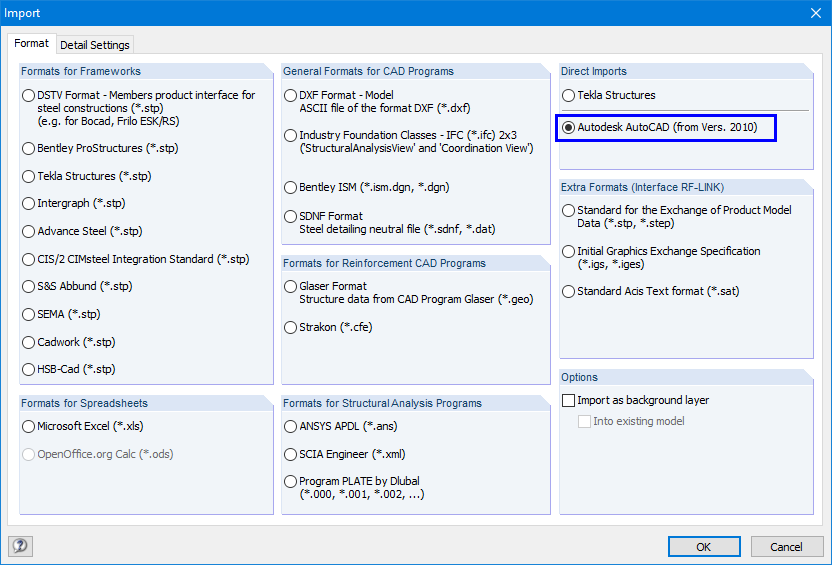

You can import one or more surfaces to RFEM using IFC files. Thus, the structural data, such as nodes, lines, or material, are exported.

For example, you can export the floor plans as DXF and display them as a background layer in RFEM.

Feature 001692 | Export to Allplan

Export to Allplan

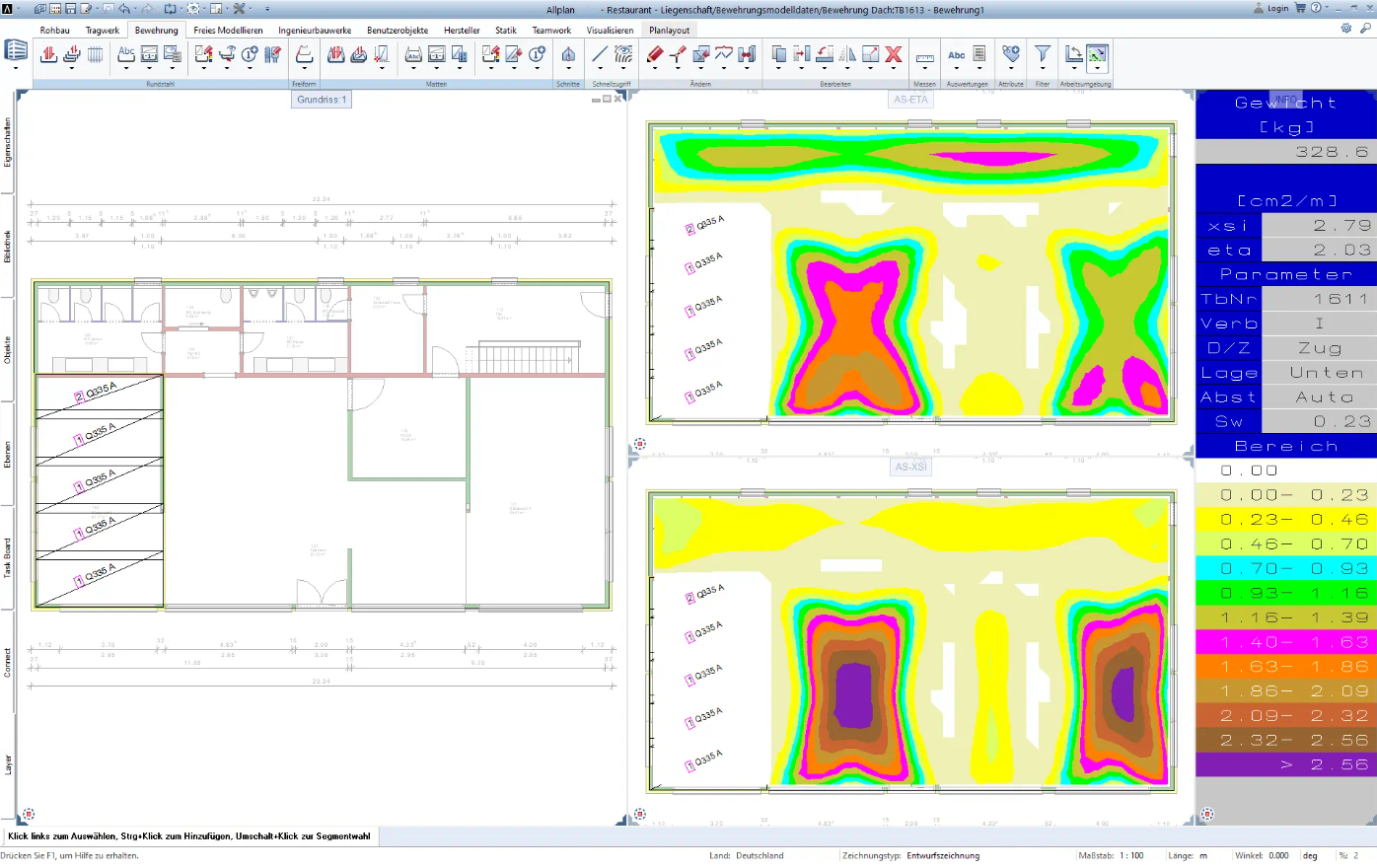

A reinforcement determined in RF-CONCRETE can be exported with an ASF file to Allplan. Allplan displays the reinforcement contours and FEA reinforcement color images.

If reinforcement is placed in the surface, the FEA reinforcement color images are adjusted, meaning that the reinforcement values of the placed reinforcement are substracted from the values of the required reinforcement.
