This model integrates advanced calculation methods to analyze the dynamic responses of structures, considering the second-order analysis. It allows for a detailed and precise simulation of the behavior of building structures in RFEM 6 and RSTAB 9, especially when considering P-Delta effects and other nonlinear effects.

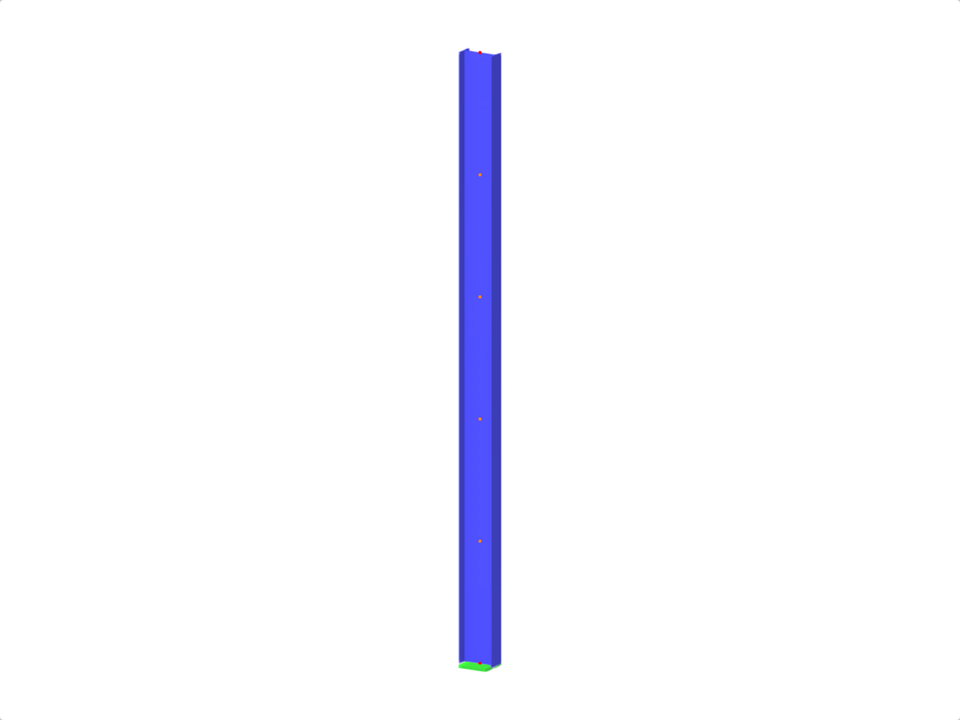

Steel Column
Number of Nodes | 6 |
Number of Lines | 1 |
Number of Members | 1 |
Number of Surfaces | 0 |
Number of Solids | 0 |
Number of Load Cases | 6 |
Number of Load Combinations | 1 |
Number of Result Combinations | 0 |
Total Weight | 0.211 tons |
Dimensions (Metric) | 0,000 x 5,000 x 0,000 m |
Dimensions (Imperial) | 0 x 16.4 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
