The design by the Kozłowski‑Projekt Engineering Office is comprised of steel supporting structures consisting of more than 30 individual structures with a total weight of approximately 1,433 tons. This constitutes the site’s processing line along with the machines.

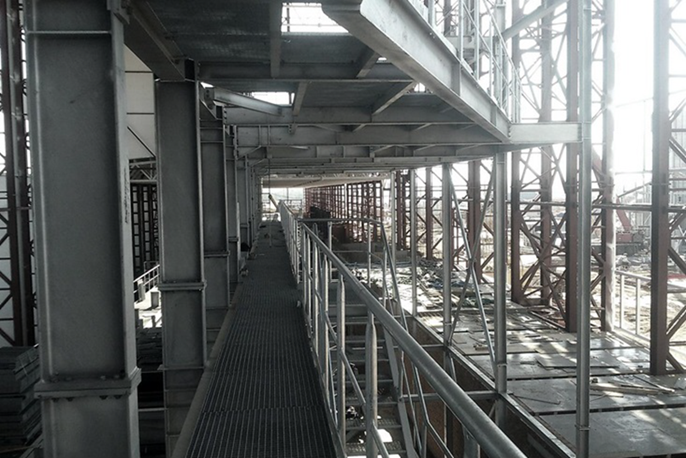

Construction
The scope of the work included structural design and planning as well as assembly documentation. Due to various production stages, it was necessary to treat each structure individually and thoroughly understand the functions and needs of a given process.
This factory is not the first large project by the Kozłowski‑Projekt Engineering Office. The submission of the design before the scheduled date and the high quality of the design were key factors that distinguished this project and contributed to its success.
It is also worth mentioning that there were no collisions during construction and assembly.
The characteristic features of the design are: easy assembly, proper support conditions, proper operation of machines, and communication.
The main challenge was to coordinate the models from three phases:
- Technology (PDMS, Inventor)
- Drafting (Tekla)

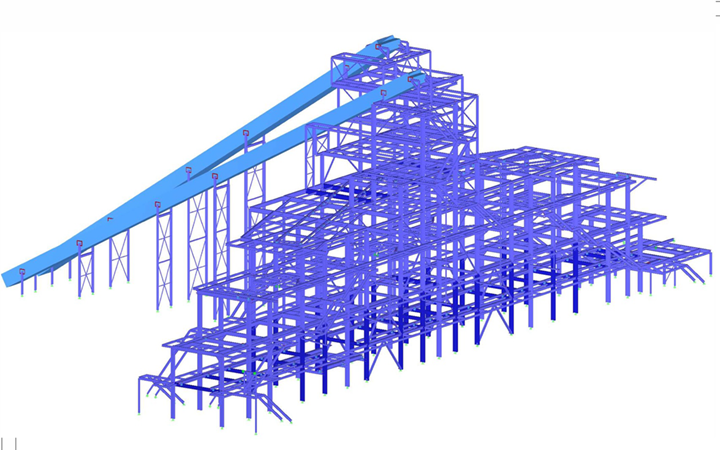

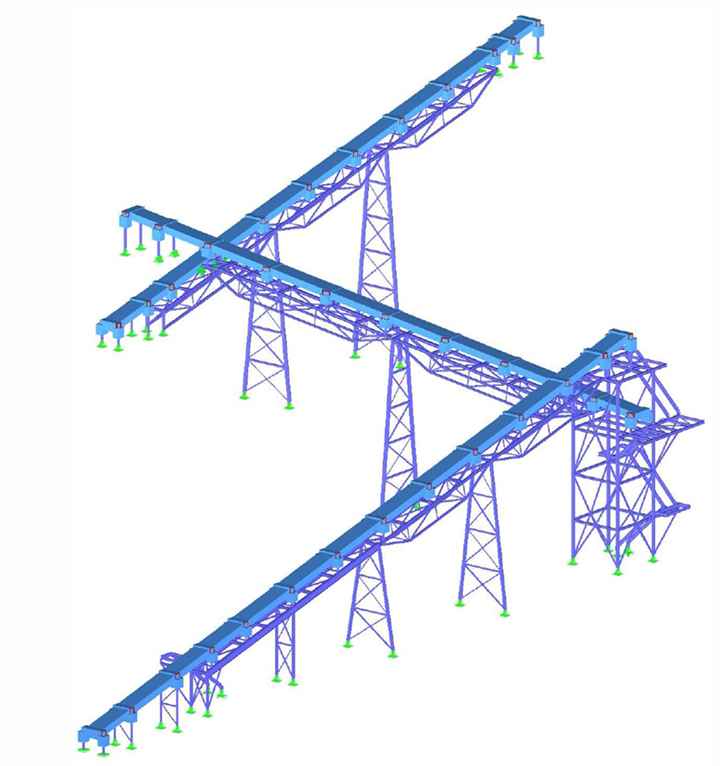

- Structural design (Dlubal RSTAB)
Furthermore, the design qualified for the worldwide finale of the Tekla Global Awards.
