When connecting tensile stresses structural components with bolted connections, it is necessary to consider the cross-section reduction due to the bolt holes in the ultimate limit state design. The following article describes how is it possible to perform the tension resistance design according to EN 1993‑1‑1 with the net cross-section area of a tension member in the RF‑/STEEL EC3 add-on module.

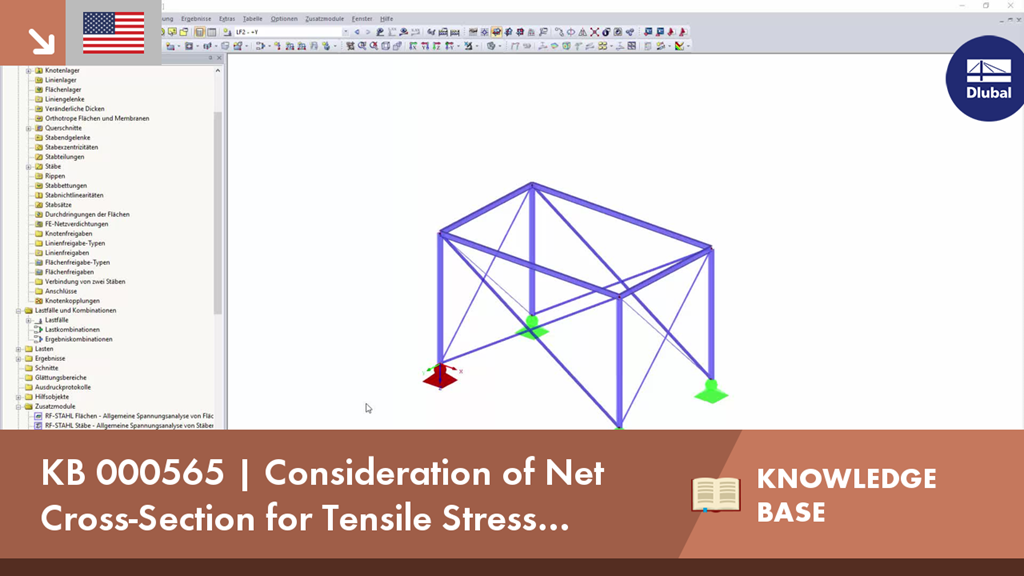

KB 000565 | Consideration of Net Cross-Section for Tensile Stress According to EN 1993-1-1
Links
Do you have any questions?
![Entering Net Cross-Section Area in Add-on Module](/en/webimage/015029/2959847/1_Input_of_net_section_area.png?mw=512&hash=b014a12787f79975ebbe993d41cff431b7e73d1b)
When connecting tension-loaded components with bolted connections, the cross-section reduction due to the bolt holes must be taken into account in the ultimate limit state design. This article describes how the design of the tension resistance according to DIN EN 1993‑1‑1 can be performed with the net cross-section area of the tension member in the RF‑/STEEL EC3 add-on module.
