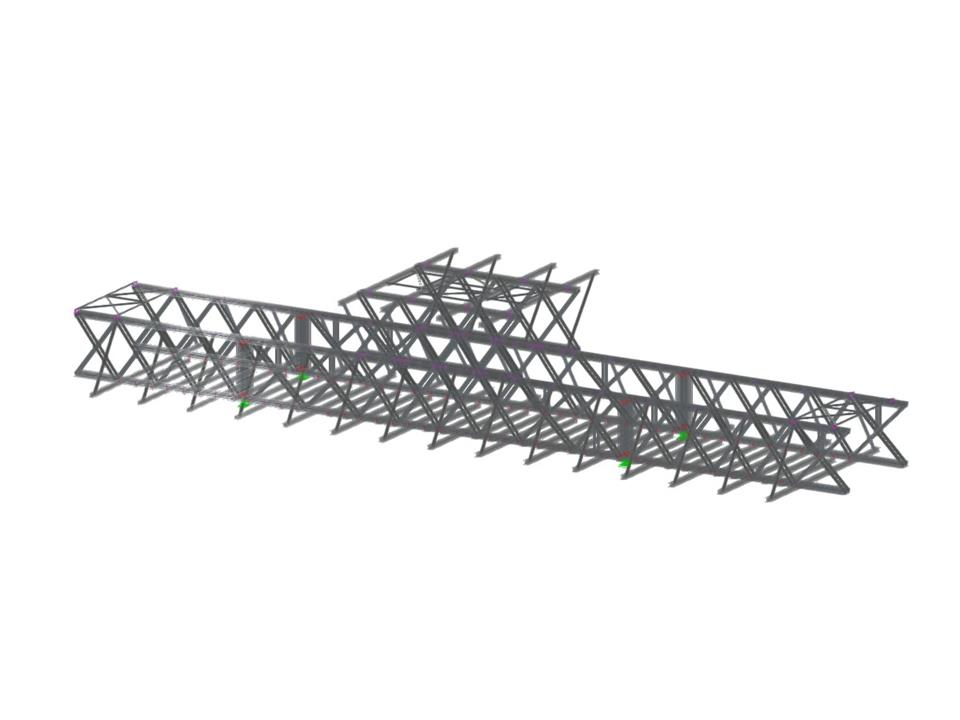

Model of the Dance Floor System project in Alamo, San Antonio, TX, United States designed by the Dlubal customer Encofrados Alsina.
Dance Floor System Platform in Álamo, San Antonio, TX, United States
No Download Possible
Customer Project / View Only
| Number of Nodes | 1486 |
| Number of Lines | 2269 |
| Number of Members | 2269 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 4 |
| Number of Load Combinations | 34 |
| Number of Result Combinations | 4 |
| Total Weight | 22.739 tons |
| Dimensions (Metric) | 28,700 x 4,425 x 7,611 m |
| Dimensions (Imperial) | 94.16 x 14.52 x 24.97 feet |
